Name: High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: FMS-LGS
Price: 42,500.00 USD
Availability: InStock

집 > 상품 > 기계를 형성 지붕 롤 >

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

light gauge steel framing machine

C89 roll forming machine

roof panel forming machine

Place of Origin:

CHINA

브랜드 이름:

FMS

인증:

Model Number:

FMS-LGS

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

Material:

Galvanized Steel G550

Thickness:

0.75-1.2mm

Feeding Raw Material Width:

182mm

Inner Diameter of Coil:

Φ 430-590mm;

Outer Diameter of Coil:

≤ Φ1300mm;

Web of C Profile:

89mm

Lip or edge of C Profile:

10mm

Main roll forming machine weight:

around 3000kg

Main servo motor power:

7.5kw

Hydraulic motor power:

5.5kw

강조하다:

light gauge steel framing machine

C89 roll forming machine

roof panel forming machine

지불 및 배송 조건

Minimum Order Quantity

1 SET

가격

35000$USD-50000$

Packaging Details

NAKED with plastic film

Delivery Time

30 Work days

Payment Terms

L/C,T/T,D/A,D/P,Western Union

Supply Ability

1 set/30day

2025 factory price for crimping bending Roofing Sheets Roll Forming Machine Hydraulic

가장 좋은 가격 을 구하라

비디오

PLC 제어 금속 냉간 지붕 시트 제조 기계 지붕 타일 벽 패널 롤 성형기

가장 좋은 가격 을 구하라

비디오

금속 스틸 시트 스틸 플레이트 다이아몬드 체크 패턴 평준화 엠보스 기계

가장 좋은 가격 을 구하라

비디오

물결모양 3 층 컬러 스틸 롤 성형기 전자동

가장 좋은 가격 을 구하라

저희와 연락

86-317-2016816

지금 연락하세요

제품 설명

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Product Specifications

Attribute	Value
Material	Galvanized Steel G550
Thickness	0.75-1.2mm
Feeding Raw Material Width	182mm
Inner Diameter of Coil	Φ 430-590mm
Outer Diameter of Coil	≤ Φ1300mm
Web of C Profile	89mm
Lip or edge of C Profile	10mm
Main roll forming machine weight	around 3000kg
Main servo motor power	7.5kw
Hydraulic motor power	5.5kw

Technical Parameters

Main roll forming machine size: 4000×800×1200mm
Main roll forming machine weight: around 3000KGS
Main servo motor power: 7.5KW with self locking function
Hydraulic motor power: 5.5KW
Voltage: 380V/50HZ/3PH
Forming steps: 12 steps (8 main roller stations, 4 finishing roller stations)
Forming speed: around 30m/min (depends on the punch quantity and cut length)
Working capability: 5~8 Tons/8 hours (can work 24 hours)
Material of roller: imported DC53 steel, CNC Center Machining, heat treatment HRC58-62°, fine grinding
Material of main shaft: 40Cr steel tempering and fine grinding
Sprocket wheel: #45 steel high-frequencies quench
Cut-off system: hydraulic cutting device
Material of blade: imported tungsten steel with quenched treatment 60-62°C
Tolerance for cutting and punching: ±0.5mm
Tolerance for forming: ±0.75mm
Control system: 19" touch screen and one main control box
Main electronic parts brand: Mitsubishi PLC from Japan, Schneider Relay from France, Omron Encoder from Japan, INVT Servo Motor from China
Material for frame of machine: fine welded structural steel
Painted color: Gray & Blue

Main Accessories

Main Roll Forming Machine
3 Tons Manual Un-coiler
- Function: bearing steel coil, rotating steel coil; with micro-braking device to prevent inertia from running forward during emergency stop
- Driving method: pulling by the roll forming machine
- Max Loading Weight: 3 Tons
- Inner Diameter: Φ430-590mm
- Outer Diameter: ≤Φ1300mm
Driving and Hydraulic System
Equipment Control Software
Product Software: 1 set
Automatic Punching Device (Service Hole, Dimple Hole, Lip Cut, Web Notch, Lip Notch, Blot Hole, Shrinking Groove)
Hydraulic Post-cutting Device (material: SKD-11)
Automatic Printing Device: print on two height sides symmetrical
Run Out Table: 4 meters

VERTEX BD Design Software

Vertex BD is the leading software system for cold formed steel. Vertex provides complete architectural design and product information management solutions for commercial and residential building design and manufacturing. Vertex BD is based on a flexible platform to respond to the changing needs of the framing and manufacturing industries.

"The benefits are not limited to the design office. Since the switchover, the factory has benefited greatly from the clear fabrication drawings and precise cutting list information. The site installers have seen an improvement in the quality of the drawings and 3D detailing they are supplied, and we now have the ability to assist accounts and stock control with accurate bill of materials information."
-Kimberly Manufacturing Pty Ltd - Australia

"The information we get from Vertex is clear, concise and understandable. 99.9% of what we put out fits without any onsite modification. Brilliant!"
-Dan Miller, Senior CAD Designer, Panel Systems Inc.

Features of Vertex BIM

Frame structures for walls, floors, and roofs are automatically generated to save your design time
Real 3D modeling ensures 100% accuracy and reduces design defects
Automatically generate frame architecture drawings and building elevation drawings
Generate accurate profile blanking tables and bills of materials to accurately estimate items
Various CNC output files can be generated to meet production needs
The powerful and flexible design platform can customize the profile library and frame generation rules according to customer needs
Compatible with other BIM software through powerful IFC import and export tools
Vertex engineering analysis function can be used for structural calculation

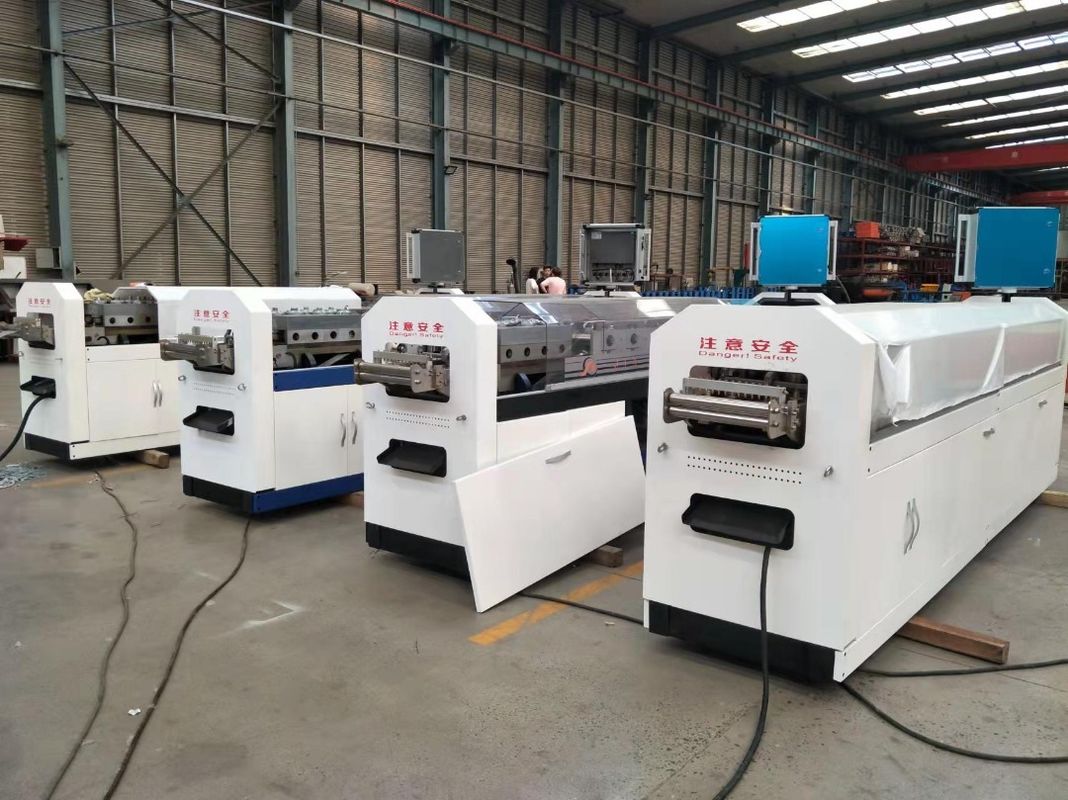

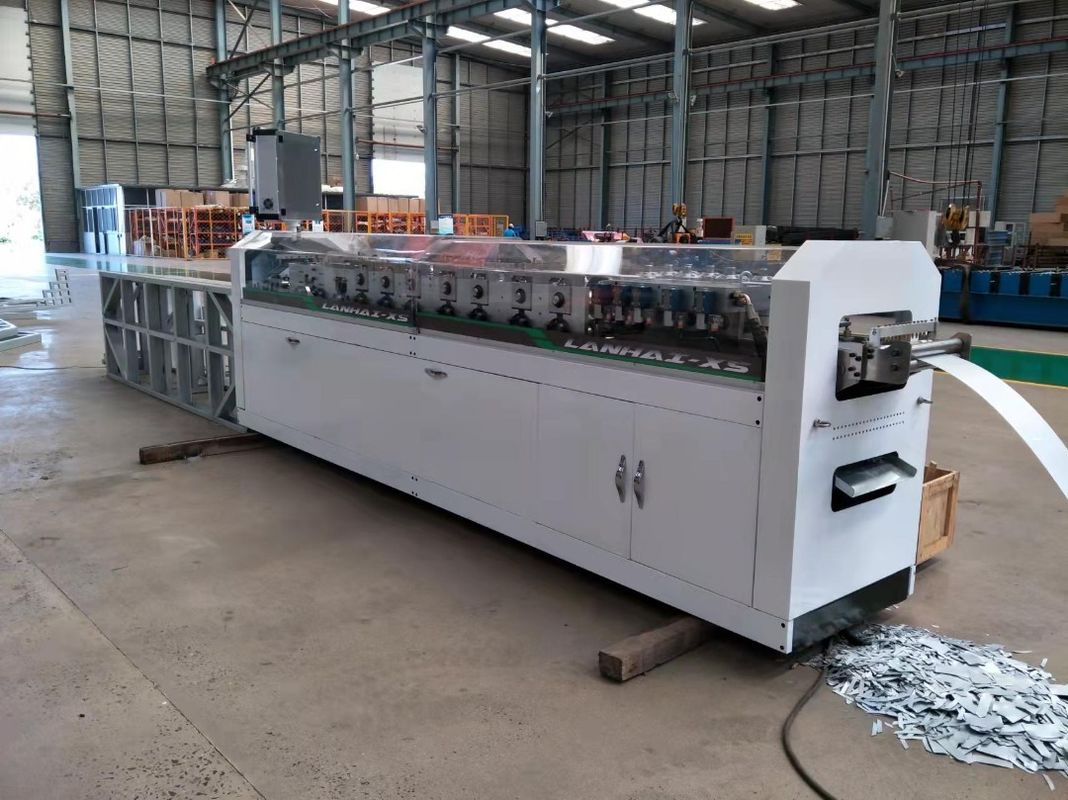

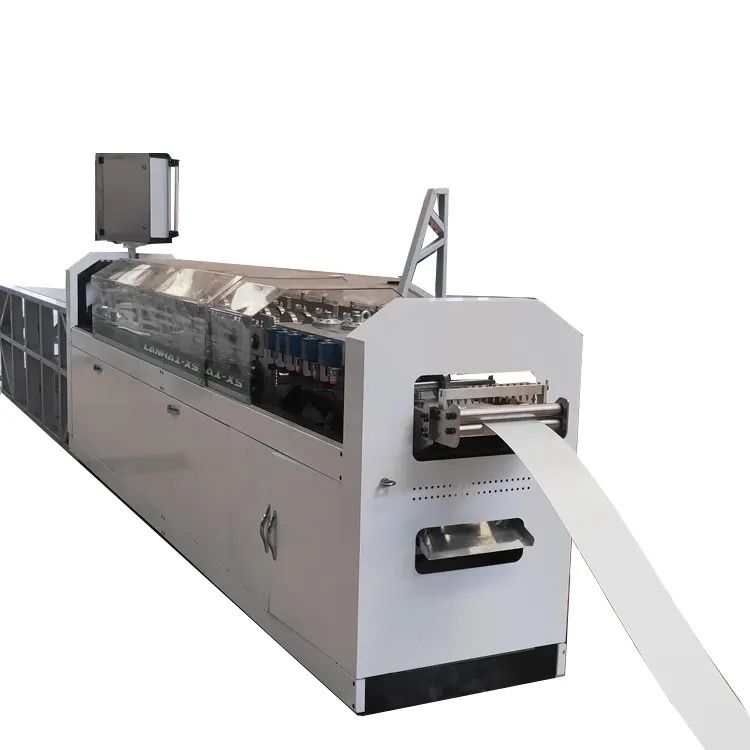

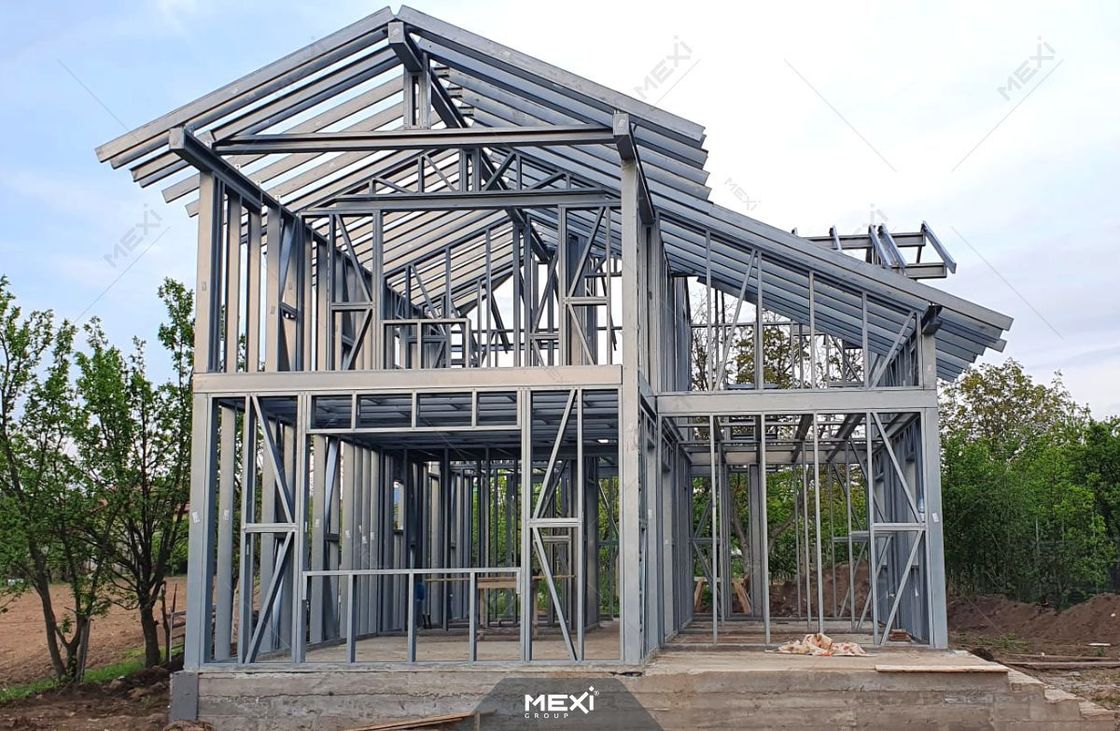

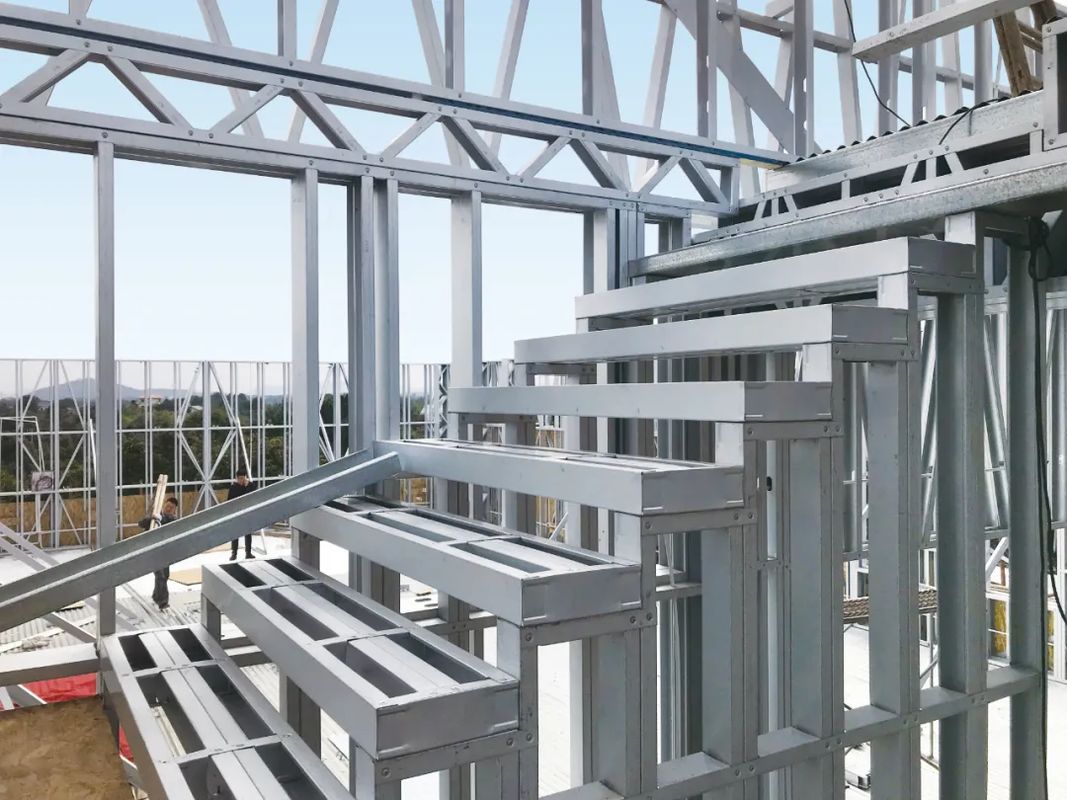

Product Images
