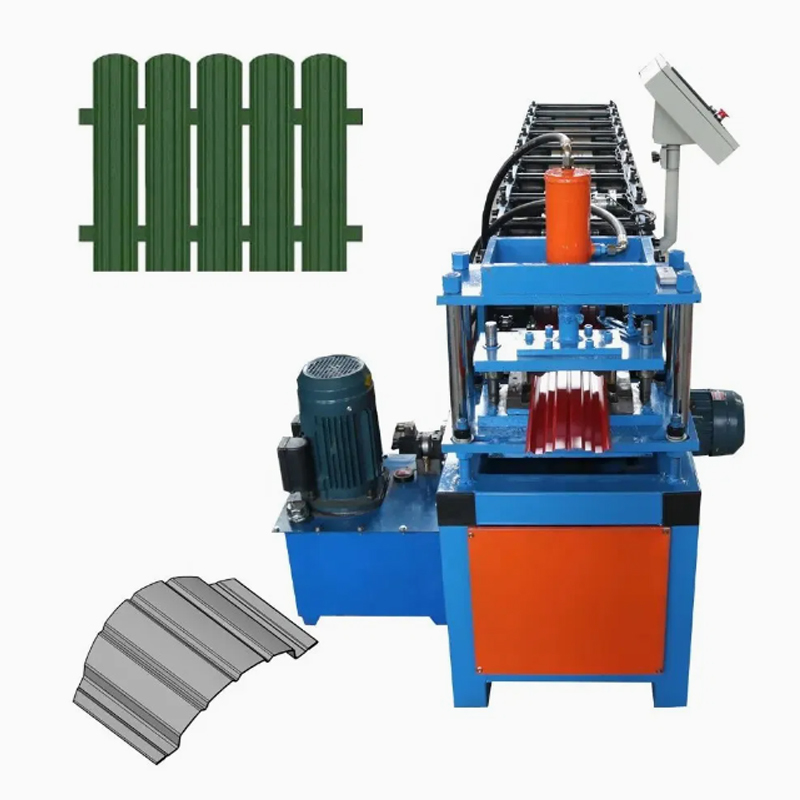

Metal Steel Picket Fence Garden Fence Cold Roll Forming Machine
Fence board forming machine is a special equipment for producing fence boards. Fence boards are usually used in places such as fences, guardrails, isolation belts, etc., and have functions such as protection, isolation, and decoration. Fence board forming machine gradually processes metal coils (such as galvanized steel plates, color steel plates, aluminum plates, etc.) into the shape of fence boards through multiple roll forming processes. The equipment has the characteristics of high degree of automation, high production efficiency, and high forming accuracy.
| No. | Item | Description |
|---|---|---|
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min (not including the cutting time) |
| 4 | Roller Station | 6 Row |
| 5 | Dimension (L*W*H) | 3500 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 2900 KG |
| 7 | Electrical Control System | Delta PLC (can be customized) |
| 8 | Drive Motor Power | 3.5KW |
| 9 | Hydraulic Station Power | 3.5KW |
| 10 | Power Supply | 380V, 60HZ, 3 PHASES (can be customized) |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 1 inch |
| 13 | Material of Shaft | 70 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
High Accuracy Hydraulic Post Cutting Picket Fence Roll Forming Machine is made side panel which is using for EPS sandwich panel. Due to it have good looking, long service life, high quality, it widely used in workshop wall and roofing, shopping mall wall and roofing, garage wall and roofing etc.
