| 상품 이름: | 롤 성형기 이중 레이어 기계를 시트로 덮는 파형 타입 부등변 4각형 타입 가정 | 원료: | GI GL PPGI PPGL |
|---|---|---|---|
| 차원(L*W*H): | 8.5*1.2*1.5m | 생산력: | 15-30 Ｍ / 분 |
| 샤프트 재료: | 45# 강철 외경 : 80 밀리미터 | 두께: | 0.3mm-0.8mm |
| 중량: | 6000 킬로그램 | 칼날재를 줄이기: | 크롬 12 모프 |
| 하이 라이트: | Roof Sheeting Roll Forming Machine 30m/min,Roof Sheeting Roll Forming Machine Electric Cutting,corrugated roll forming machine 30m/min |
||

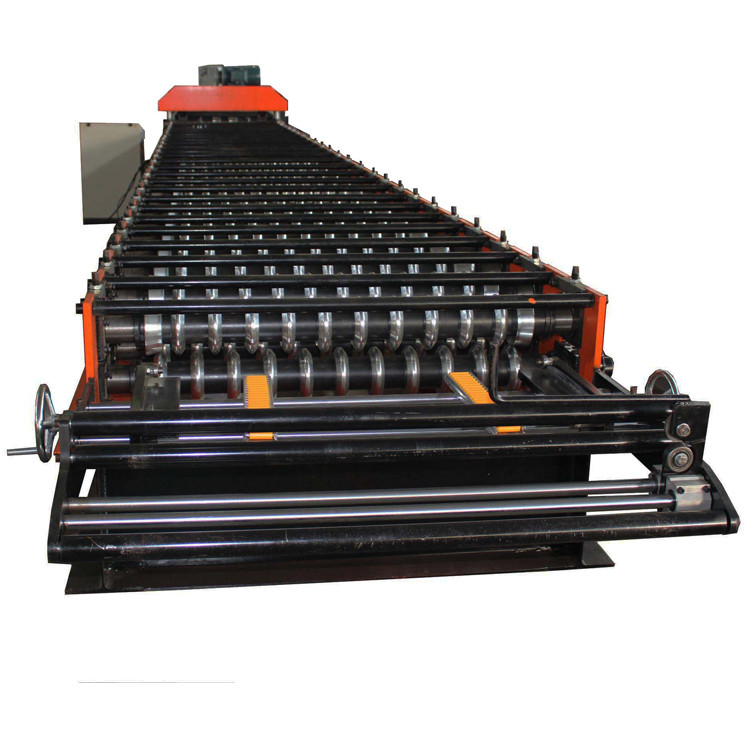

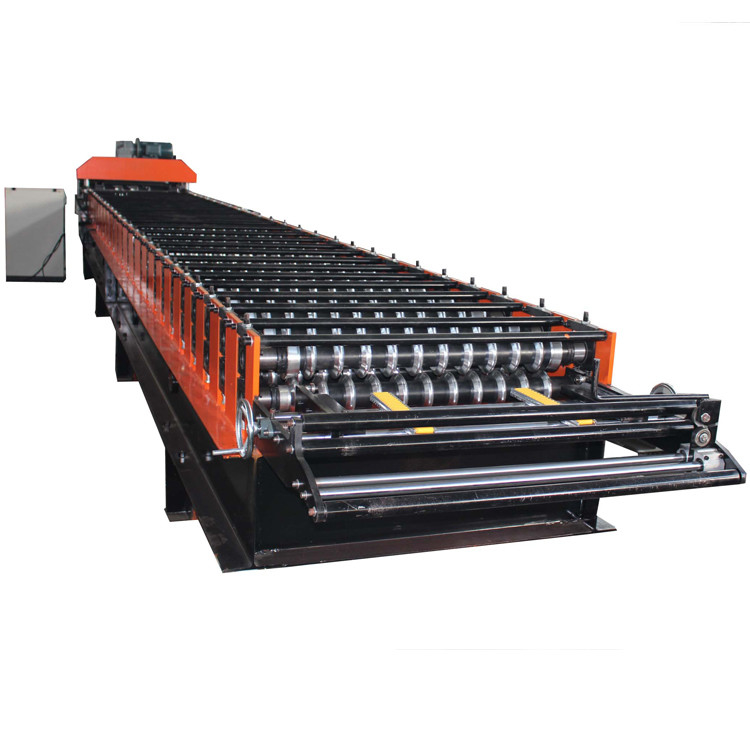

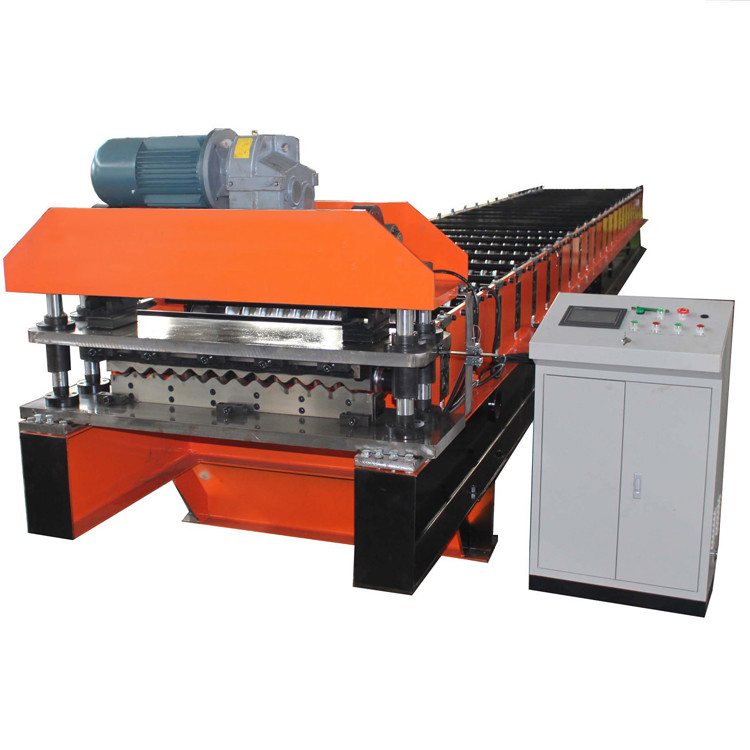

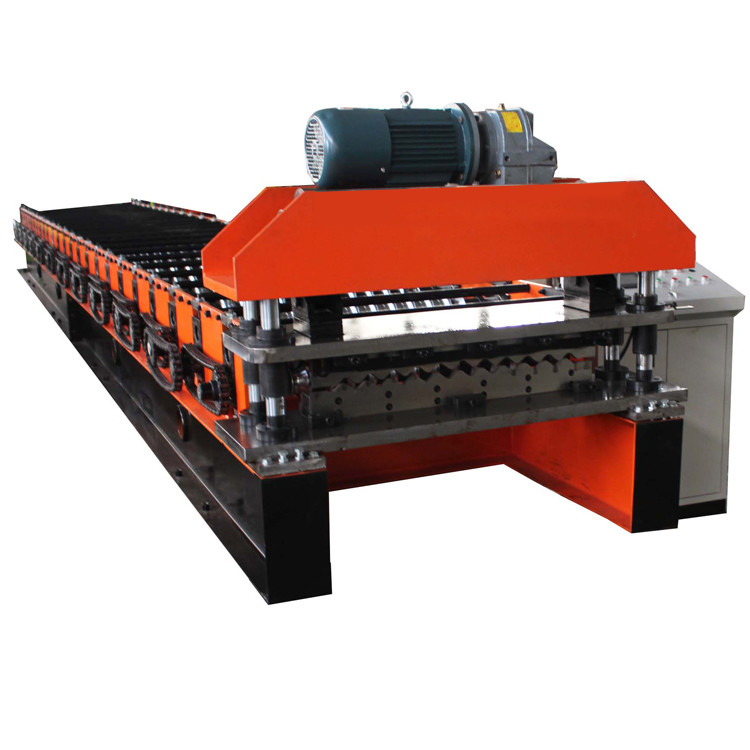

Corrugated Type Roof Sheeting Roll Forming Machine Electric Cutting System
Specification
|
Specifications for reference
|
|
| Dimension(L*W*H) |
7.5*1.2*1.5m
|
|
Rolling thinckness
|
0.3-.08 m/min
|
|
Feeding width
|
as per drawing
|
|
finished width
|
as per drawing |
| Shaft material | 45# Steel Outer Diameter: 70mm |
|
Cutting blade material
|
Cr 12 Mov
|
Application
The roof tiles making machine can produce a variety of steel roofs and wall plates, mainly using color steel plates as raw materials. These products are widely used in roofs and walls of warehouses, garages, stadiums, exhibition centers, cinemas, laboratories, theaters, etc. It has the advantages of convenient installation, short construction period, corrosion resistance, long -term service life and high strength..
Payment terms
30% in advance by TT as down payment ,70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
