제품 상세 정보:
결제 및 배송 조건:
|
| 상품 이름: | 자동 융기 냉롤 가정 롤 성형기 | 원료: | GI, GL, PPGL, PPGI, 알루미늄 |
|---|---|---|---|
| 시스테플크텀을 제어하세요: | PLC | 두께: | 0.3-0.8mm |
| 타일 형태: | 돌기 캡 | 상태: | 새롭습니다 |
| 색: | 고객 레큐우스트에 따라서 | 원동력: | 4KW |
| 하이 라이트: | automatic ridge cap roll forming machine,4KW Roof Roll Forming Machine,0.3mm Roof Roll Forming Machine |
||
Automatic Ridge Cold Roll Roof Roll Forming Machine
The ridge tiles produced by our company are rich in color, light in weight, good in water resistance, high in strength, fast in installation, and generally have a service life of 15-20 years.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 11 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |

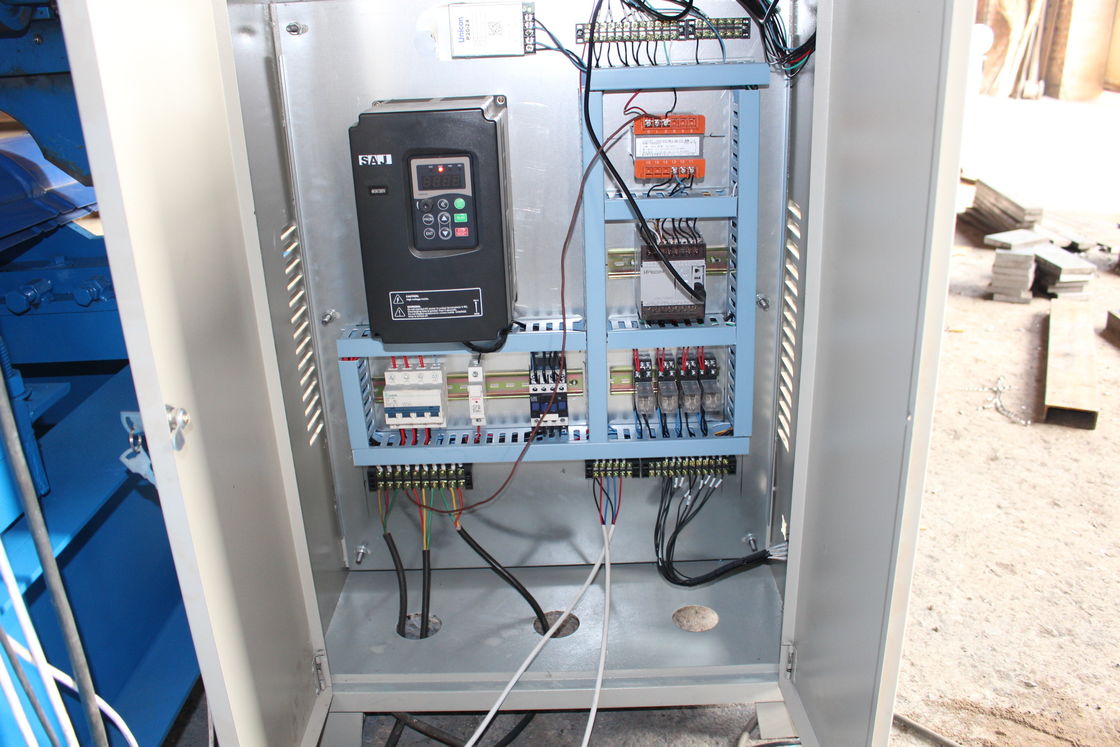

Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |

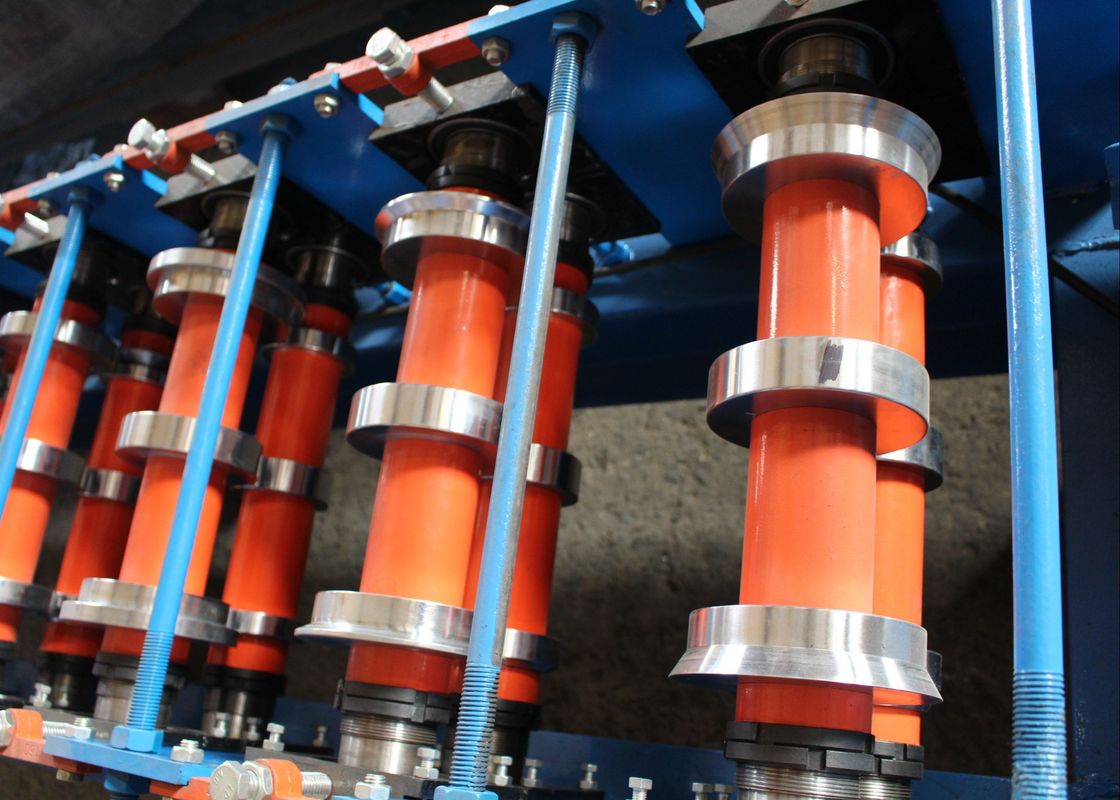

| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The Metal Roof Ridge Cap Building Materials is widely used in the construction of various industrial plants, villages, warehouses, lab , exhibition, family construction, shopping malls etc.
Advantage
The color steel roof ridge cover has the characteristics of light weight, high strength, good waterproofness, convenient and quick installation, etc., and can be widely used in the roofs of villas, urban flats, and tourist attractions. Compared with other materials, not only the construction period is short, but the construction method is simple, and the beautiful roof can be maintained without editing and repairing. The curved color steel roof ridge tiles are more complete on the basis of the handmade roof ridge tiles. It is a better partner for colored steel glazed tiles or colored steel plates.
