제품 상세 정보:
결제 및 배송 조건:
|
| 제품 설명: | PLC 규제고 정밀도 파형 판 옥상 롤 성형기 | 두께: | 0.3-0.8mm |
|---|---|---|---|
| 샤프트 재료: | 소재는 45# 제철입니다 | 차원(L*W*H): | 8500mm*1500mm*1500mm |
| 제어 시스템: | PLC | 속도: | 15-18 M/Min |
| 전압: | 380V 50Hz 3Ph | 중량: | 4.5T |
| 원동력: | 4KW | 오일 펌프 모터 동력: | 4KW |
| 하이 라이트: | 0.8 밀리미터는 박판 압연 기계를 주름지게 했습니다,plc 파형 판 롤링 장치,0.8 밀리미터는 시트 롤 성형기를 주름지게 했습니다 |
||

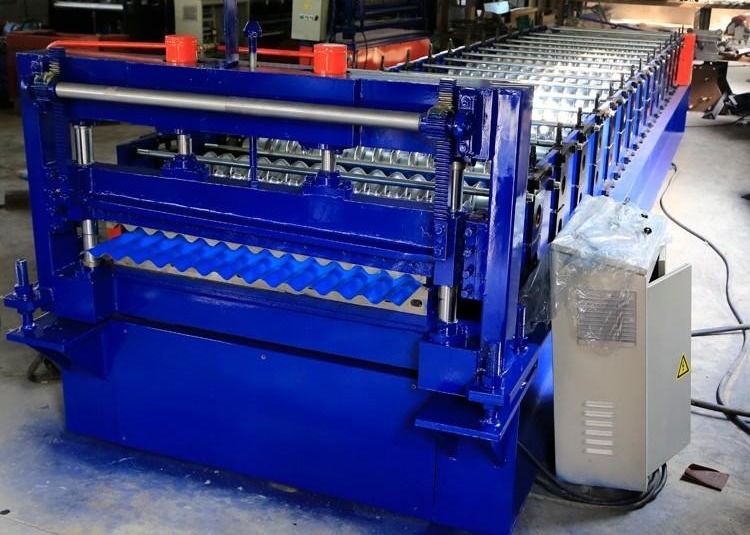

PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine
The fully automatic tile press is a mechanical equipment that uses modern electromechanical control technology to achieve programmed and automated production in the process of producing compacted tile blanks. The automatic tile press can be installed and used separately, and can be equipped with production lines such as automatic uncoiler and automatic packaging machine, which can be fully automated.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI PPGL GI GL |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 18 rows |
| 4 | Dimension | 8500mm*1500mm*1500mm |
| 5 |
Main servo |
4 kw |
| 6 | Hydraulic station power | 4 kw |
| 7 | Thickness of raw material | 0.3-0.9mm |
|
8 |
Productivity |
20-25m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The roof roll forming machine can produce various steel roofs and wall panels, mainly using color steel plates as raw materials. The products are widely used in the roofs and walls of warehouses, garages, stadiums, exhibition centers, cinemas, laboratories, theaters, etc. It has the advantages of convenient installation, short construction period, corrosion resistance, long service life, and high strength.
Advantage
PLC Control High Precision Corrugated Sheet Roof Roll Forming Machine is composed of PLC control system, hydraulic pump station system, and automatic shearing system. This machine adopts high-number pulse input function, high-number input performance is excellent, AB phase anti-interference ability is strong. It has the characteristics of fast running speed, stability and high precision
