Name: Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 샌드위치 패널 롤 성형 기계
Price: 40,500.00 USD
Availability: InStock

집 > 상품 > 샌드위치 패널 롤 성형 기계 >

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Auto sandwich panel production line

PU foam sandwich wall panel machine

Sandwich panel roll forming machine with warranty

원래 장소:

중국

브랜드 이름:

FMS

인증:

모델 번호:

샌드위치 패널 롤 성형 기계

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

샤프트 직경:

70mm 또는 요구 사항으로

샤프트 재질:

고급 45# 단조강

커팅 블레이드:

퀀칭된 처리와 CR12 주형강

성형 속도:

5-8m/분

절단날 재질:

Cr12MOV, 열처리

전원공급장치:

380V, 3상, 50Hz

샤프트 재질:

고급 45# 스틸, 직경 70mm

두께:

0.3-0.8mm

형성 단계:

11개 스테이션

힘:

5.5KW

재료 너비:

1200mm 1050mm

강조하다:

Auto sandwich panel production line

PU foam sandwich wall panel machine

Sandwich panel roll forming machine with warranty

지불 및 배송 조건

최소 주문 수량

1세트

가격

negotiable

포장 세부 사항

플라스틱 박막으로 벌거벗습니다.

배달 시간

45가지 월 일

지불 조건

전신환, 신용장

공급 능력

달 당 20개 세트

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

가장 좋은 가격 을 구하라

비디오

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

가장 좋은 가격 을 구하라

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

가장 좋은 가격 을 구하라

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

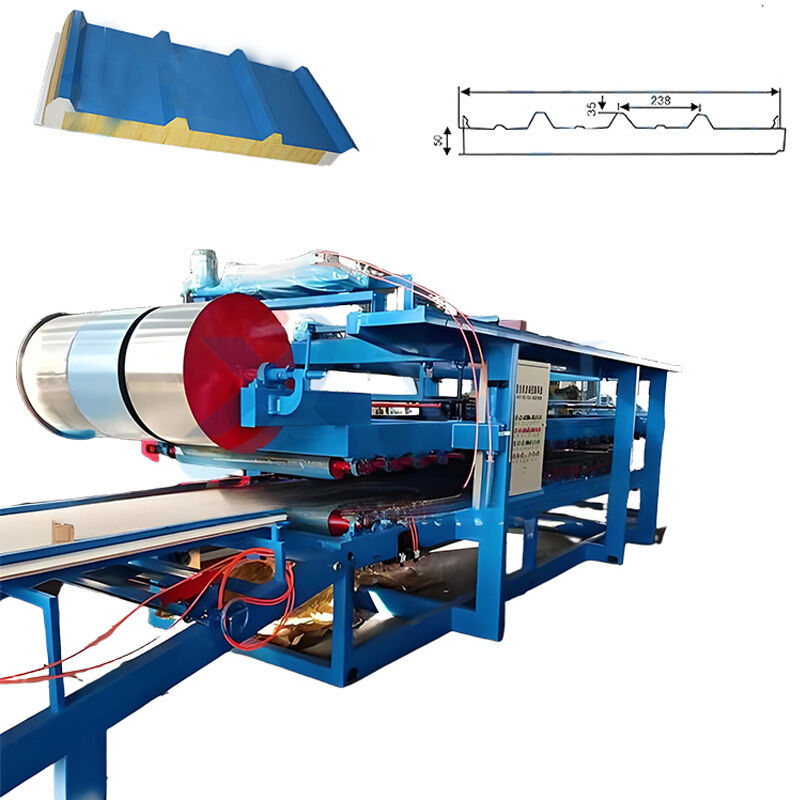

Auto Sandwich Panel Production Line

PU Foam Sandwich Wall Panel Making Machine for EPS rock wool composite board production, designed for building insulation applications in walls, roofs, and floors.

Production Process

This automated production line combines EPS board and rock wool through a comprehensive process:

EPS board processing: cutting and trimming
Rock wool processing: cutting and paving
Composite bonding: hot pressing or cold pressing
Final molding: forming composite boards to required specifications

Equipment Components

EPS board processing unit for cutting and trimming
Rock wool processing unit for cutting and paving
Composite unit for bonding materials
Molding unit for final specifications
Automated control system for entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-200mm
Working Speed	5-6m/min
Equipment Size	Approximately 34000mm × Width 2500mm × Height 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/8 Rows

Warranty & Guarantee

1-year guarantee against manufacturing defects (excluding electrical parts) from purchase date.

Warranty Exclusions

Damage due to natural disasters
Malfunctions from user error
Issues due to modifications
Problems from movement or shipment after installation

Payment Terms

40% advance down payment, 60% balance paid before shipment processing.

Delivery Information

FOB: Tianjin Xingang Port

Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, it can produce more than 6 different panel types.

What support is provided if the machine breaks down?

12-month warranty period. If broken parts cannot be repaired, we provide replacement parts (customer covers express costs). After warranty, we offer technical support throughout equipment lifespan through negotiation.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for reference, or welcome you to visit our factory and test the machine personally.
