Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 샌드위치 패널 롤 성형 기계
Price: 40,500.00 USD
Availability: InStock

집 > 상품 > 샌드위치 패널 롤 성형 기계 >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

원래 장소:

중국

브랜드 이름:

FMS

인증:

모델 번호:

샌드위치 패널 롤 성형 기계

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

샤프트 직경:

70mm 또는 요구 사항으로

샤프트 재질:

고급 45# 단조강

커팅 블레이드:

퀀칭된 처리와 CR12 주형강

성형 속도:

8-15m/분

절단날 재질:

Cr12MOV, 열처리

전원공급장치:

380V, 3상, 50Hz

샤프트 재질:

고급 45# 스틸, 직경 70mm

두께:

0.3-0.8mm

형성 단계:

11개 스테이션

힘:

5.5KW

재료 너비:

1200mm

강조하다:

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

지불 및 배송 조건

최소 주문 수량

1세트

가격

negotiable

포장 세부 사항

플라스틱 박막으로 벌거벗습니다.

배달 시간

45가지 월 일

지불 조건

전신환, 신용장

공급 능력

달 당 20개 세트

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

가장 좋은 가격 을 구하라

비디오

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

가장 좋은 가격 을 구하라

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

가장 좋은 가격 을 구하라

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

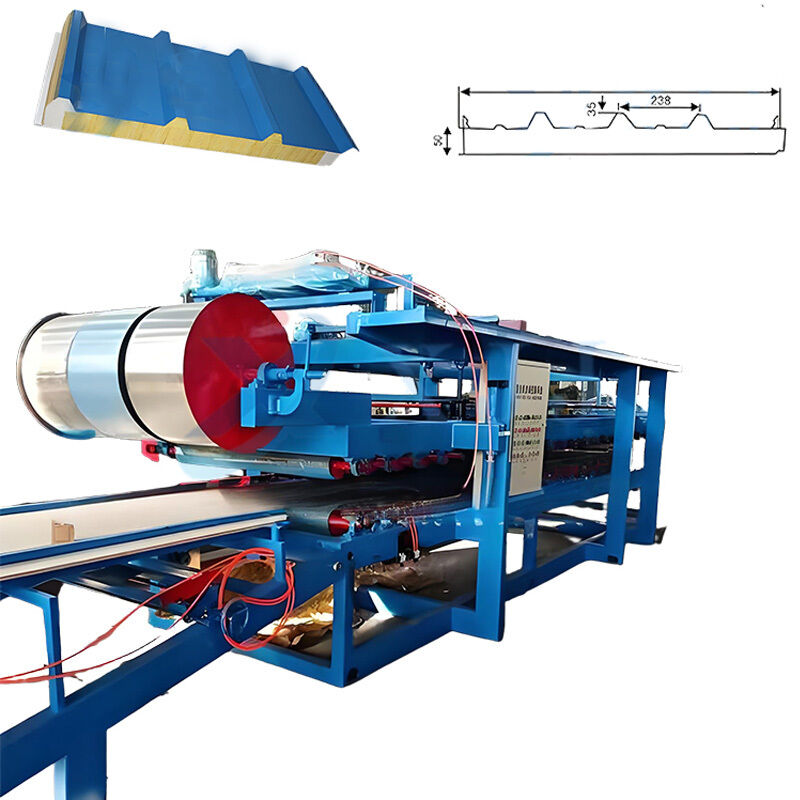

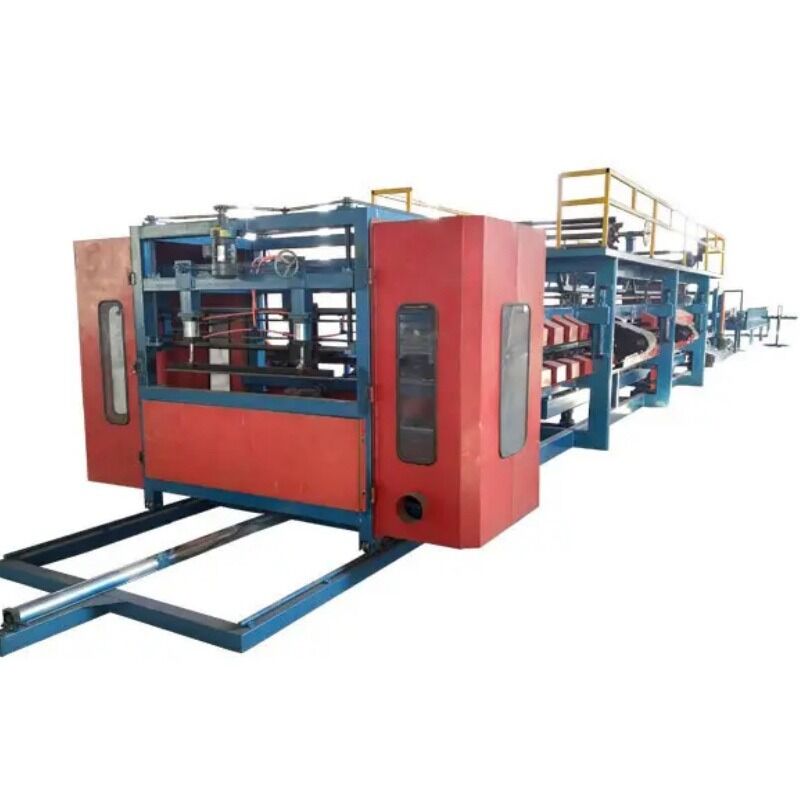

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
