Name: 2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: 미니 자동 슬릿 라인
Price: 26,500.00 USD
Availability: InStock

집 > 상품 > 길이와 틈새선에 줄여집니다 >

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

high speed slitter slitting line machine

hydraulic uncoiler slitting line

40m/min slitting line with recoiler

원래 장소:

중국 본토

브랜드 이름:

FAMOUSE

인증:

ISO, CE

모델 번호:

미니 자동 슬릿 라인

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

제품명:

유압식 방지기 및 반동기가있는 간단한 고속 미니 슬리터 슬릿 라인

절단 재료:

직류 전기로 자극된 갈바륨, PPGI, 알루미늄

재료 두께:

0.3mm -3mm

작업 속도:

8m /min -30 m /min (맞춤화 가능)

코일 무게:

5 톤 / 7 톤 / 10 톤 (사용자 정의 가능)

슬리팅 PC:

2-30 PC

기계 무게:

13000 KG

폭 정확성을 줄이기:

± 0.01 - ± 0.05 밀리미터

강조하다:

high speed slitter slitting line machine

hydraulic uncoiler slitting line

40m/min slitting line with recoiler

지불 및 배송 조건

최소 주문 수량

1개 세트 생산 라인

가격

negotiable

포장 세부 사항

2 PC 40' 강유전성액정

배달 시간

60 일

지불 조건

l/c, d/a, d/p, t/t

공급 능력

60 일 당 5개 세트

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

가장 좋은 가격 을 구하라

비디오

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

가장 좋은 가격 을 구하라

강철 금속 중세 두께 코일 레벨링 1.5mm 1200mm PPGI 길이까지 절단

가장 좋은 가격 을 구하라

비디오

강철 코일 40m/min 하이 스피드 슬리팅 라인 기계

가장 좋은 가격 을 구하라

저희와 연락

86-317-2016816

지금 연락하세요

제품 설명

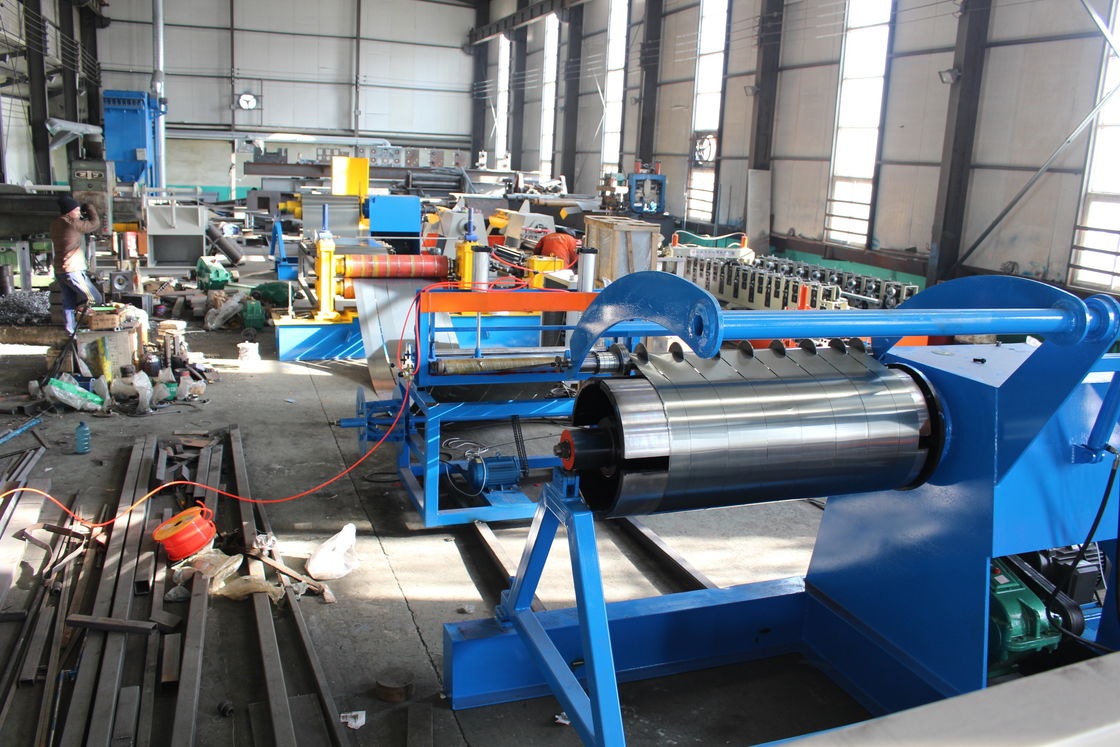

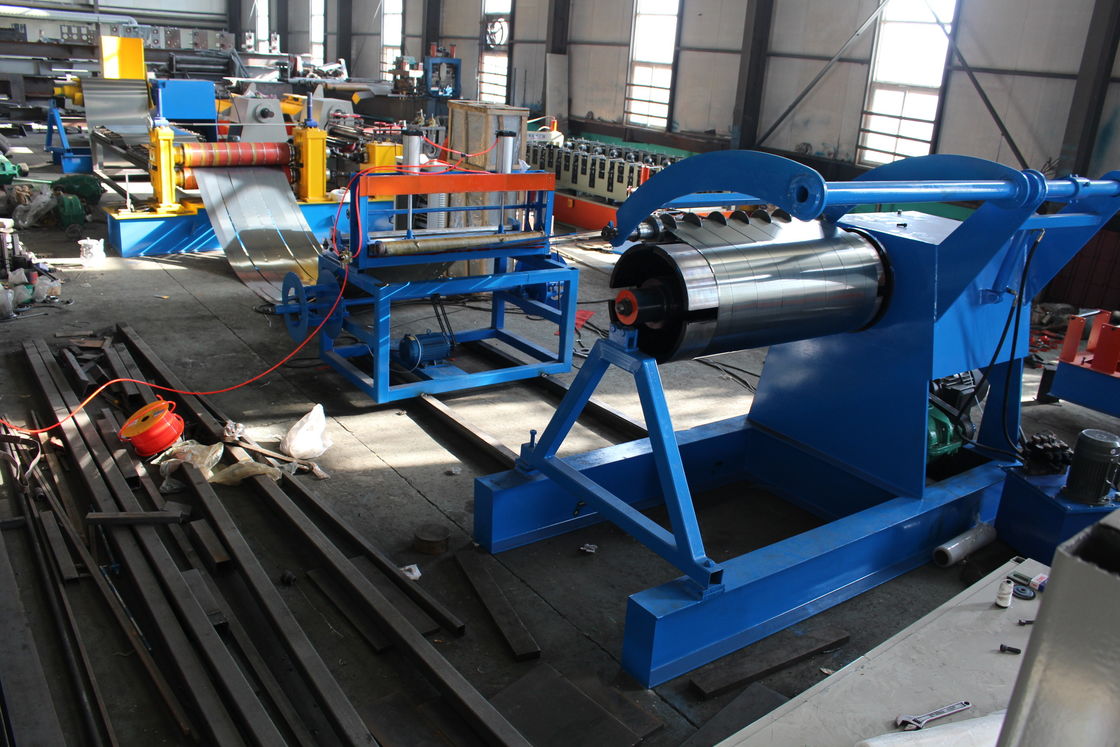

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.

Product Specifications

Attribute	Value
Product Name	Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
Cutting Material	Galvalume, Galvanized, PPGI, Aluminum
Material Thickness	0.3 mm - 3 mm
Working Speed	8 m/min - 30 m/min (can be customized)
Coil Weight	5 tons / 7 tons / 10 tons (can be customized)
Slitting Pcs	2 - 30 pcs
Machine Weight	13000 KG
Cutting Width Precision	± 0.01 - ± 0.05 mm

Main Technical Specifications

No.	Item	Description
1	Main Specification	Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa Raw Material Thickness: 0.3 mm - 3.0 mm Raw Material Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Tape Outer Diameter: φ 1600 mm Coil Weight: 5 tons - 10 tons Slitting No.: Max 30 pcs The Highest Slitting Line Speed: 8 m/min - 30 m/min Minimum Cutting Line Width: 35 mm Cutting Width Precision: ± 0.01 - ± 0.05 mm Rated Operational Voltage: 240 V, 3 Phase, 60 Hz Total Weight: 13000 KG Working Space (LW): 20000 mm6000 mm

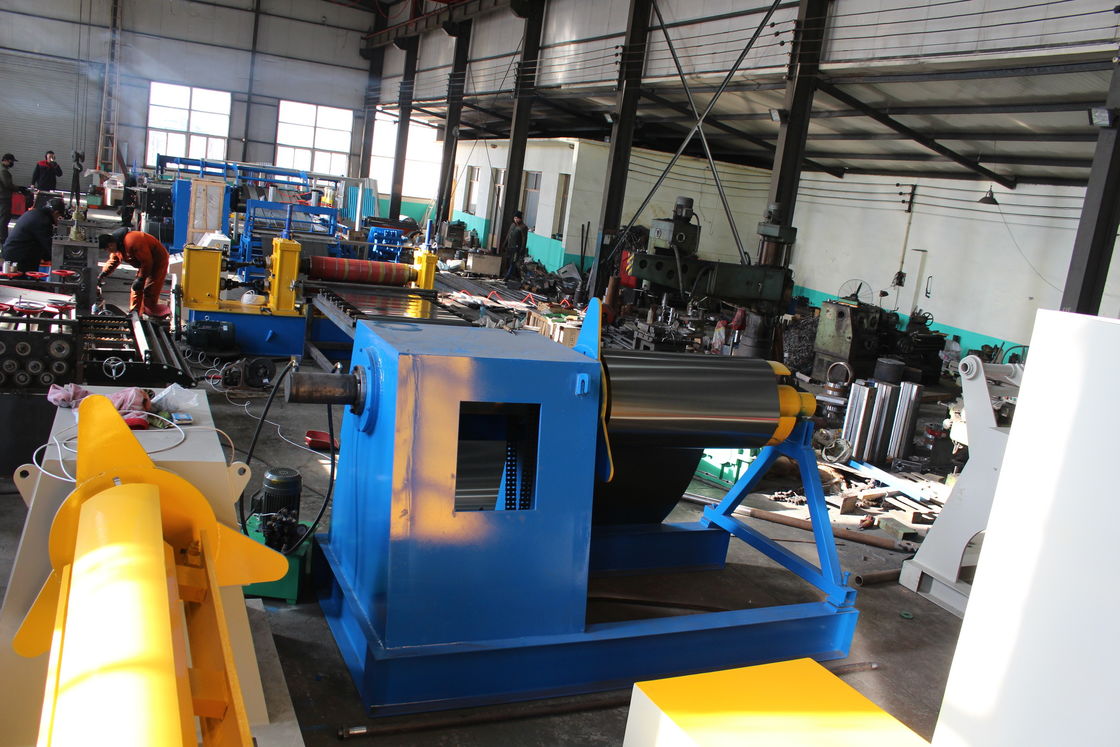

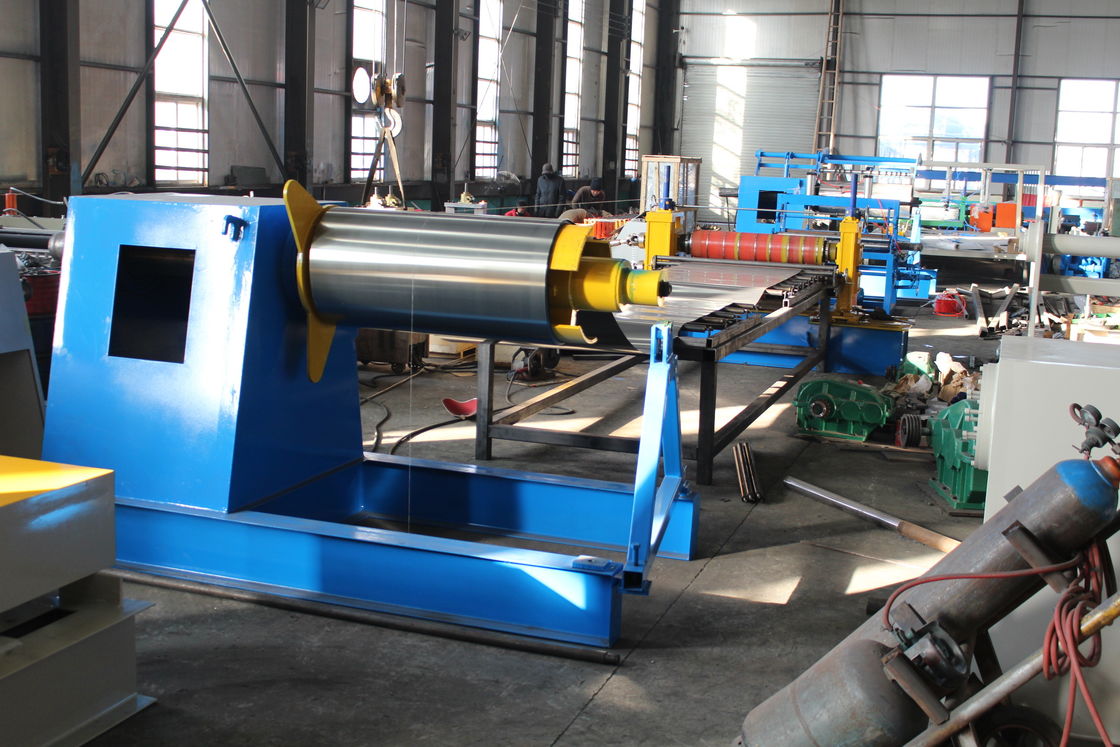

2	Decoiler Machine Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 tons - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 480 mm - φ 530 mm Shaft Diameter: φ180 mm Roller Effective Length: 1600 mm Drive Motor Power: 5.5 KW Loading Car Diameter: φ 700 mm - φ 1500 mm Loading Car Weight: 5 tons - 10 tons Car Speed: About 4 m/min

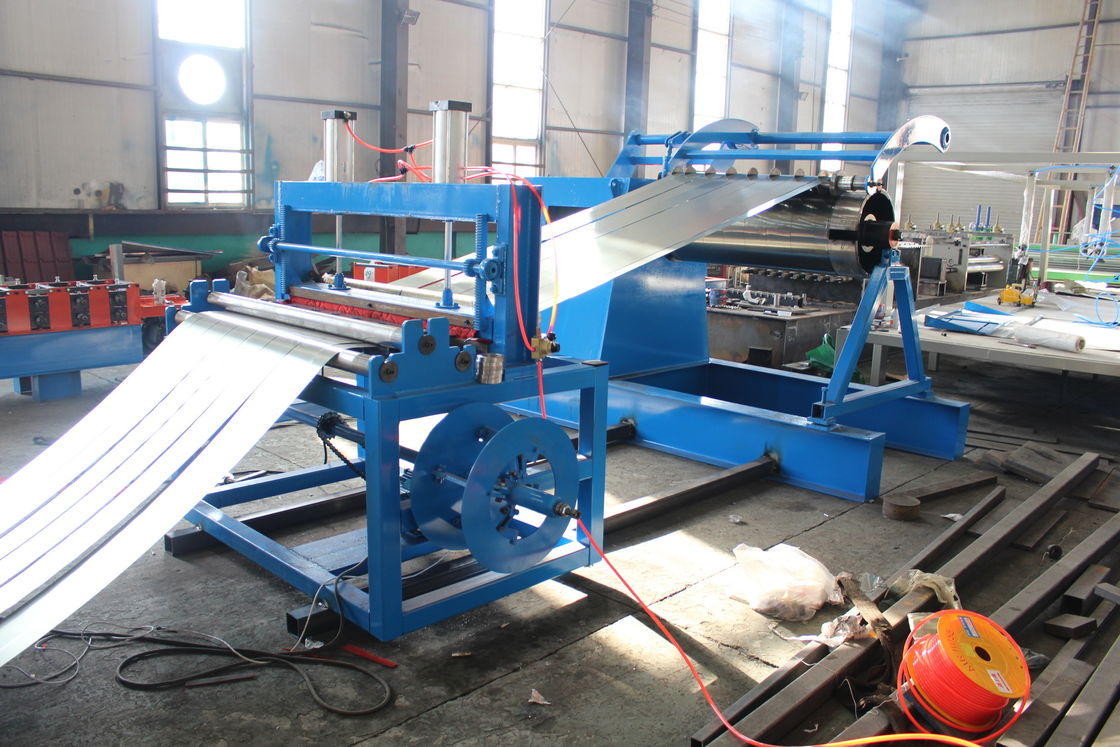

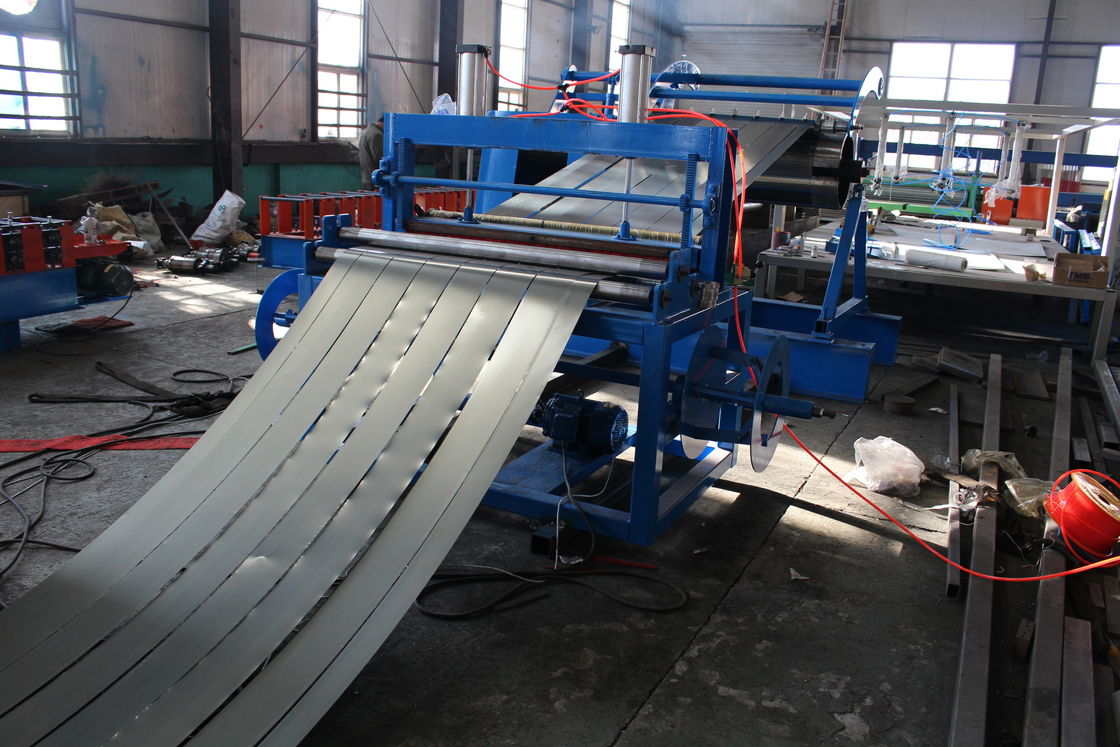

4	Slitting Machine Specification	Cutting Width: Max φ 1600 mm Cutting Thickness: 0.3 mm - 2.0 mm Cutter Shaft Diameter: φ180 mm Cutter Shaft Material: Cr 40 Cutter Size: 200 mm300 mm15 mm Cutter Material: Cr12MoV Cutter Spacer Size: 180 mm240 mm15 mm Drive Motor: 15 kw Cutting No.: 2-30 pcs Cutter No.: Max 32 pcs
7	Recoiler Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 485 mm - φ 530 mm Shaft Diameter: φ 180 mm Roller Effective Length: 1750 mm Drive Motor Power: 30 kw Loading Car Diameter: φ 1000 mm - φ 1750 mm Loading Car Weight: Max 10 tons Car Speed: About 4 m/min
9	Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10	Edge Collecting Machine	Drive Motor: 3 kw Collecting Material Width: Max 20 mm Double Edge Width: 400 mm

Recommended Applications

Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
Repairs will not be performed even during the guarantee period in the follow circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
