2025 factory priceDouble Layer Roof sheetForming Machine

2025 factory priceDouble Layer Roof sheetForming Machine

double layer roof sheet machine

factory price roll forming machine

double layer sheet forming equipment

원래 장소:

중국 본토

브랜드 이름:

FMS

인증:

ISO CE

모델 번호:

이중 레이어

저희와 연락
인용 을 요청 하십시오
제품 세부 정보
제품 이름:
이중 레이어 가정 롤 성형기 840 부등변 4각형과 836
치수 (l*w*h):
7.5*1.3*1.3 M
원료:
직류 전기로 자극된 갈바륨
작업 속도:
8-15 M / 분
회전하는 두께:
0.3-0.8mm
샤프트 재료:
45# 스틸
모터 파워:
7.5 kW
Pow 공급:
380V, 60Hz, 3Ph
윤곽:
요구된 고객으로서
강조하다:

double layer roof sheet machine

,

factory price roll forming machine

,

double layer sheet forming equipment

지불 및 배송 조건
최소 주문 수량
1 세트
가격
negotiable
포장 세부 사항
20 'FLC
배달 시간
30 일
지불 조건
l/c, t/t, d/a, d/p
공급 능력
한 달에 20 세트
관련 제품
저희와 연락
86-317-2016816
지금 연락하세요
제품 설명

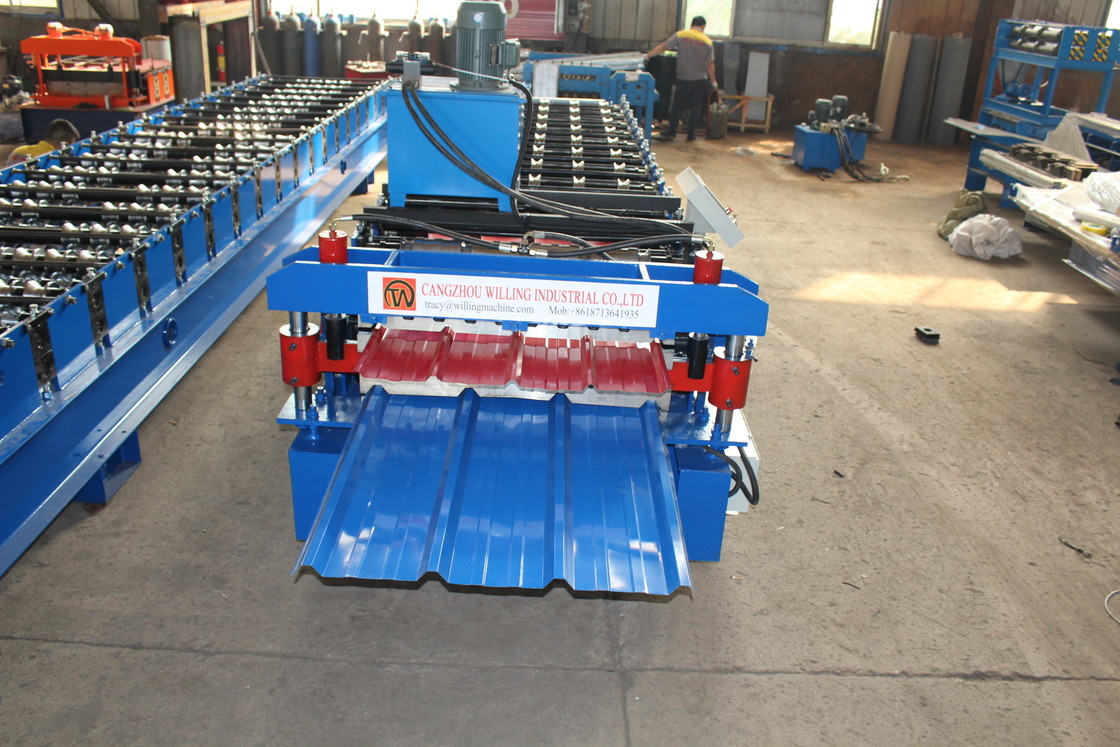

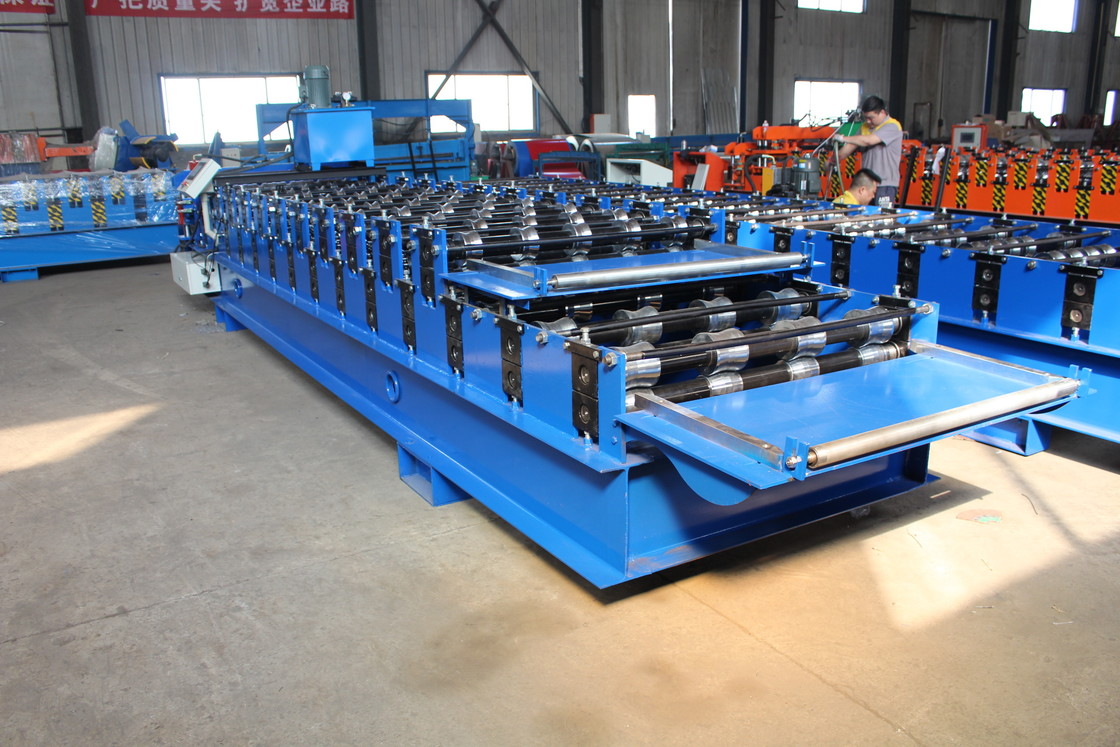

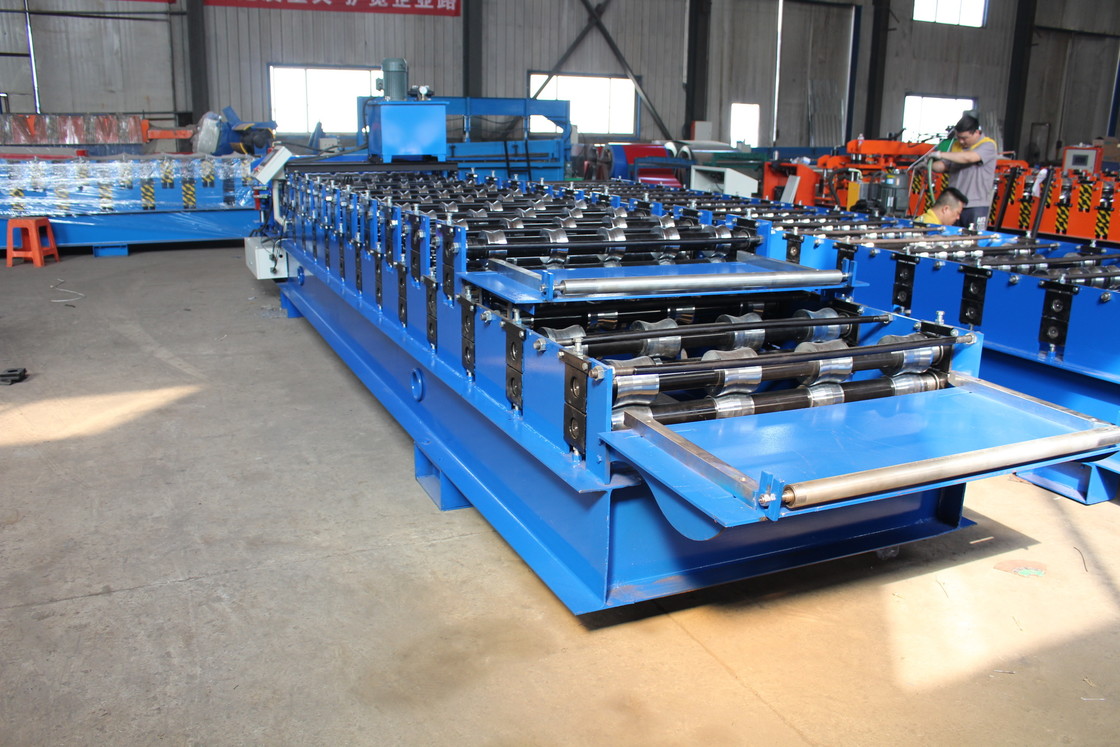

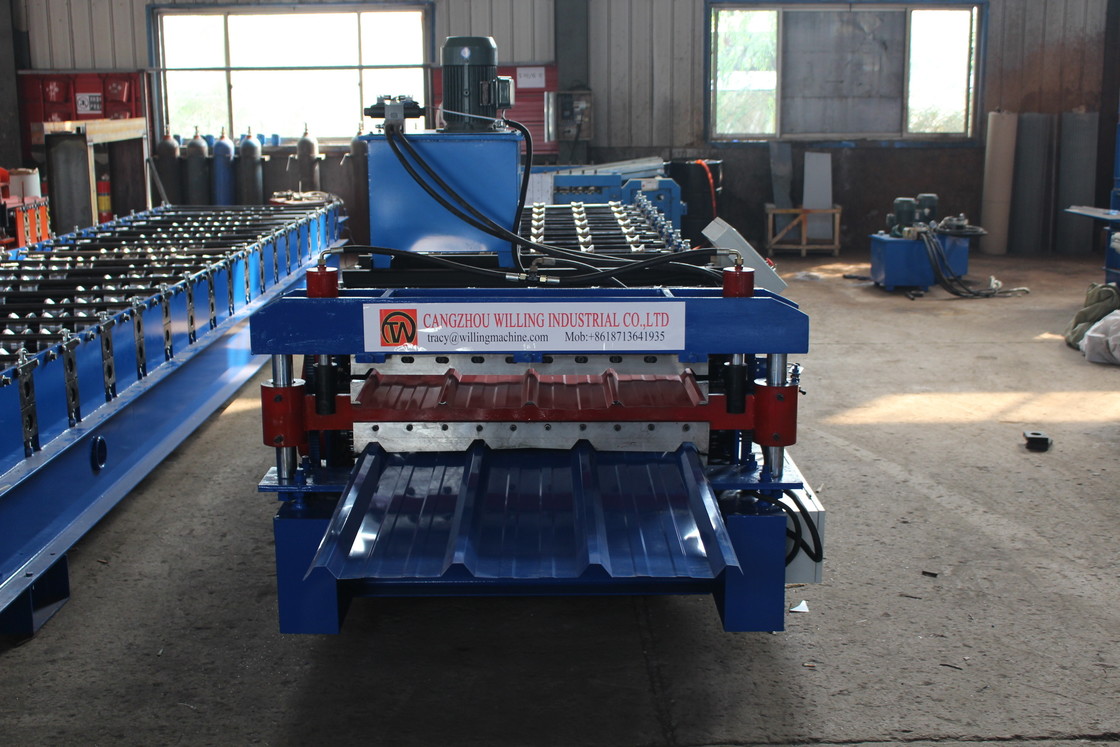

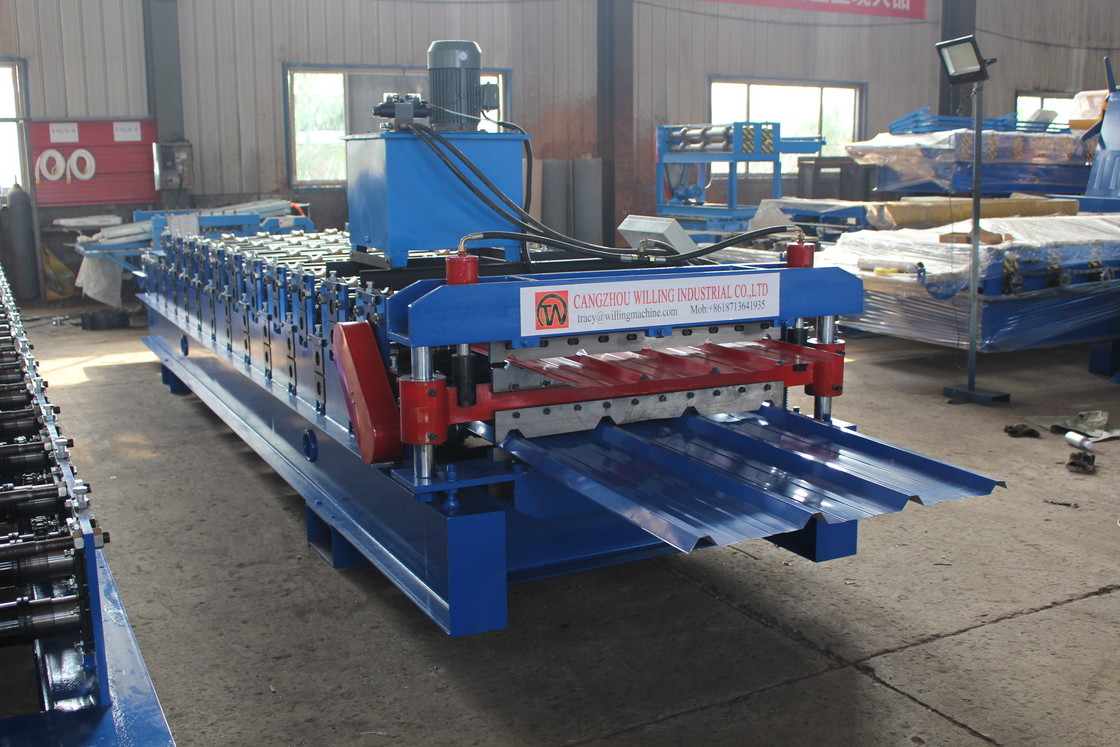

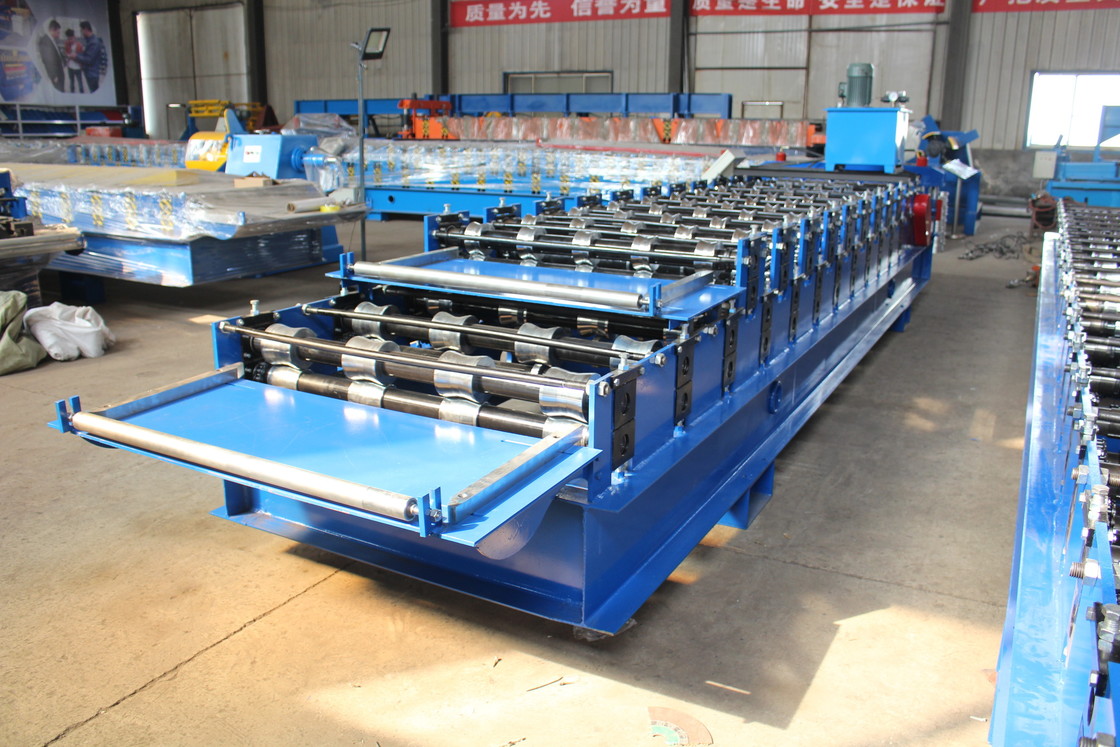

2025 Factory Price Double Layer Roof Sheet Forming Machine
2025 Factory Price Trapezoidal and Glazed Double Layer Roof Sheet Roofing Tile Roll Forming Machine
Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836
CANGZHOU FAMOUS CO., LTD products mainly include trapezoidal steel roof/wall panel machine, C&Z shape purline machine, high-way guardrail machine, sandwich panel production line, deck forming machine, C U L light keel machine, shutter slat door forming machine, cutting machine, downpipe machine, gutter machine, etc.
Specification
Part details Item Name Specification
Manual uncoiler carrying capacity tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 8.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-15 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 4 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English
Advantages
  • The metal system is accurate and solid, and will not move over time or with changes in temperature.
  • There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
  • It is a fast and clean system to erect that allows services to pass through easily.
  • All sections fit together easily and door frames are formed very simply.
Payment Terms
30% in advance as down payment
70% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
