Name: High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: FMS 샌드위치
Price: 37,500.00 USD
Availability: InStock

집 > 상품 > 샌드위치 패널 롤 성형 기계 >

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

Thickness 30-300mm Sandwich Panel Roll Forming Machine

13 Stations EPS Sandwich Panel Machine

100mm Diameter Shafts Rock Wool Sandwich Panel Machine

브랜드 이름:

FMS

모델 번호:

FMS 샌드위치

저희와 연락

인용 을 요청 하십시오

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

제품 세부 정보

용법:

격리

사이드 플레이트 두께:

16mm

샤프트 직경:

100mm

두께:

50-300

형성 단계:

13 역

모터 브랜드:

리차오

속도:

1-6m/분

수력 원동기 동력:

32KW

강조하다:

Thickness 30-300mm Sandwich Panel Roll Forming Machine

13 Stations EPS Sandwich Panel Machine

100mm Diameter Shafts Rock Wool Sandwich Panel Machine

지불 및 배송 조건

최소 주문 수량

가격

25000-50000usd

포장 세부 사항

나체상

배달 시간

지불 조건

티/티

공급 능력

1000

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

가장 좋은 가격 을 구하라

Eps Rock And Wool Sandwich Panel Production Machine For Customer Requirements

가장 좋은 가격 을 구하라

32KW Hydraulic Motor Power Sandwich Panel Roll Forming Machine with Thickness 50-300mm

가장 좋은 가격 을 구하라

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Thickness 30-300mm Rock Wool And Eps Foam Sandwich Panel Integrated Machine With High Speed

Product Description

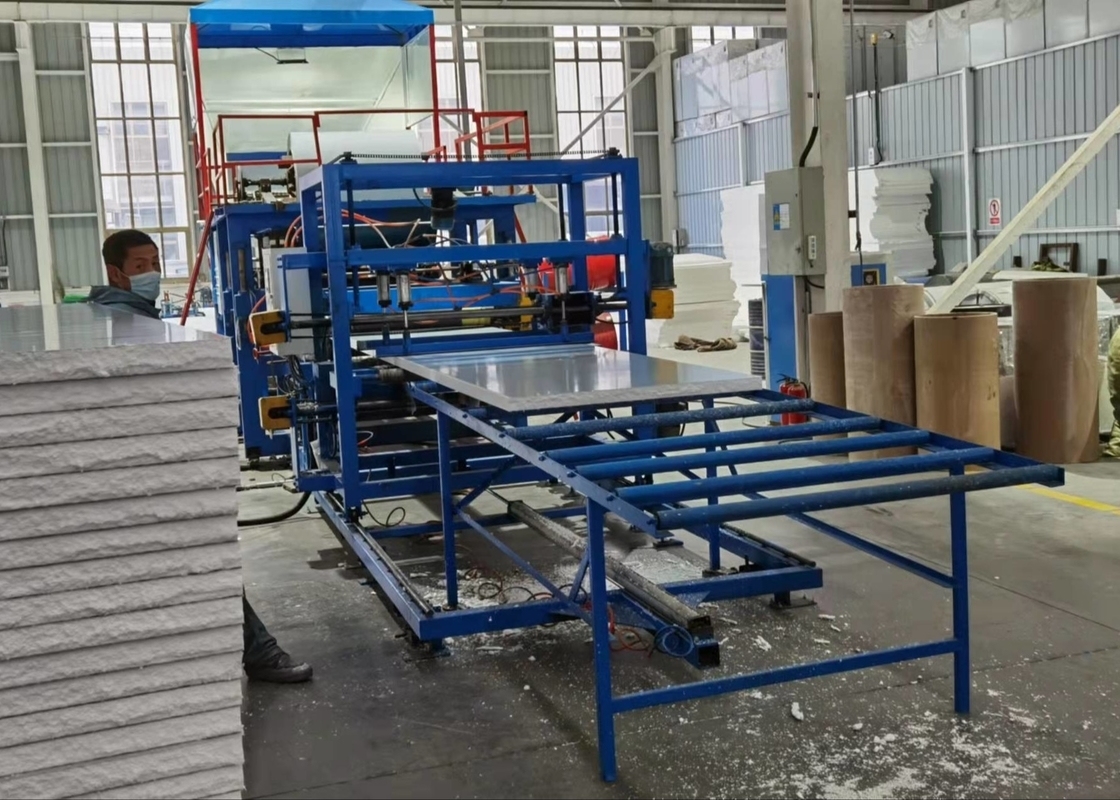

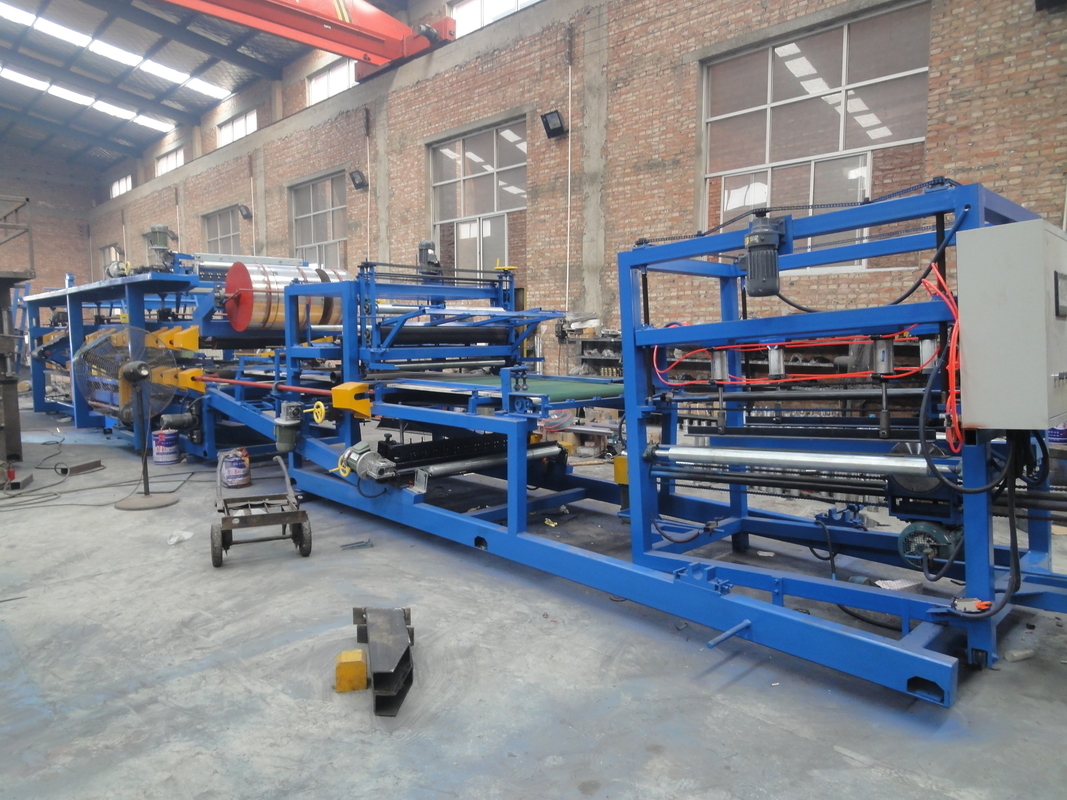

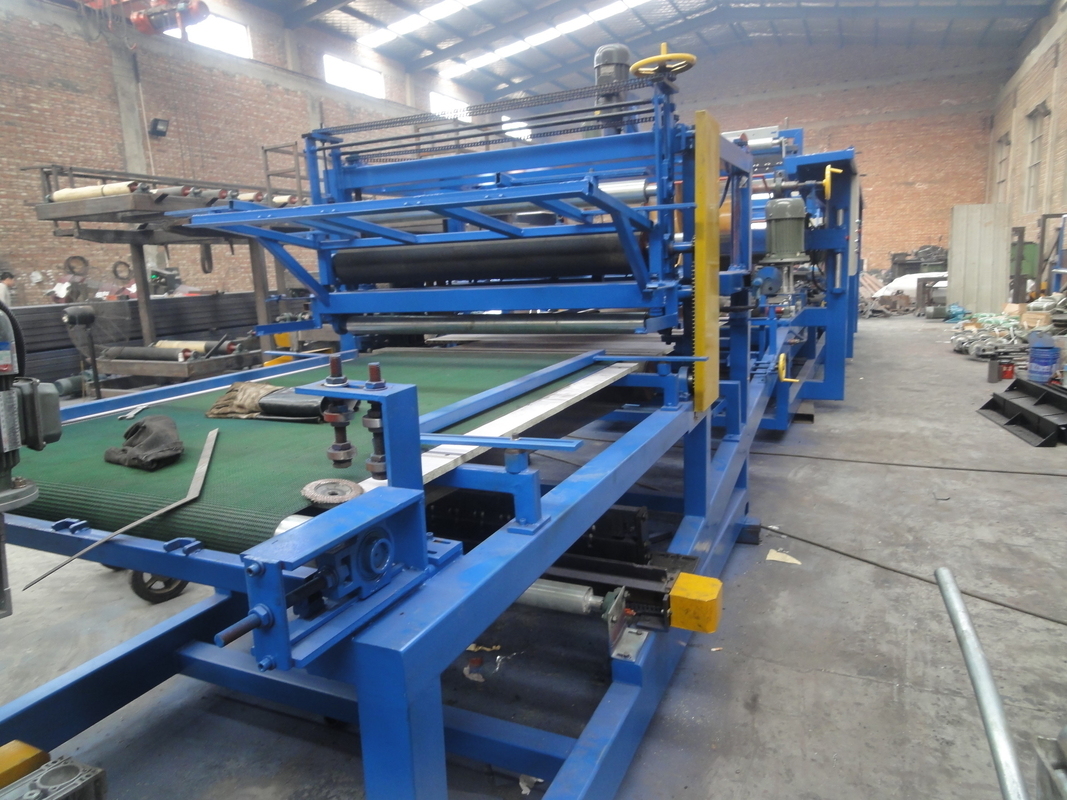

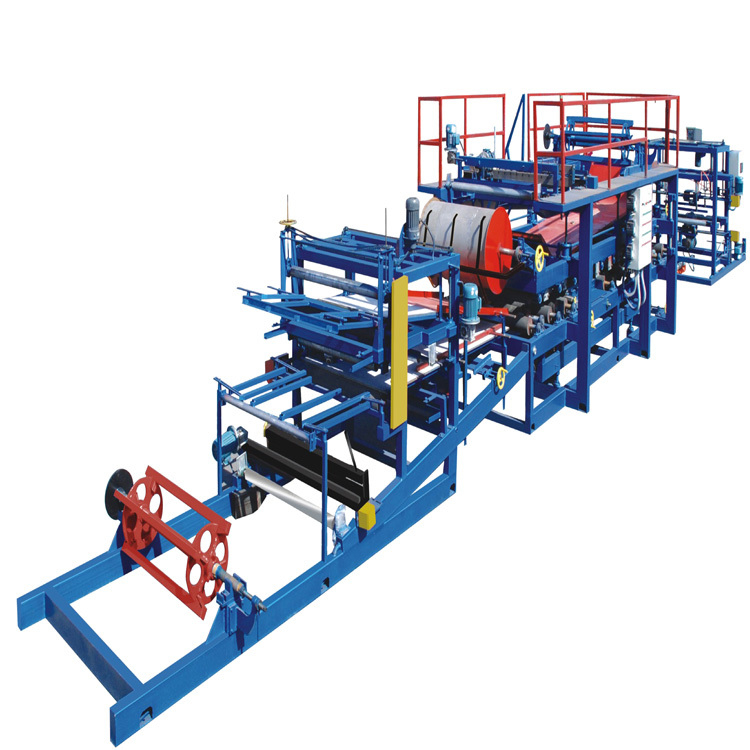

The Sandwich Panel Roll Forming Machine is an essential piece of equipment for the production of EPS sandwich panels, specifically designed to create sandwich roof panels and wall panels with high efficiency and precision.

Key features include:

Advanced transmission system with gears and sprockets for smooth, reliable operation
Versatile thickness range of 50-300mm for various insulation requirements
Cr12 heat-treated blades for durability and precise cutting with clean edges
100mm diameter shafts for stability and continuous production capability

Technical Parameters

Parameter	Specification
Forming Steps	13 Stations
Thickness	50-300mm
Control	PLC Control System
Diameter Of Shafts	100mm
Cutting Mode	Hydraulic Guide Column
Roller	Cr15
Speed	1-6m/min
Hydraulic Motor Power	32KW
Material Of Blade	Cr12 Heat Treatment
Roller Material	Cr12

Applications

This versatile machine is ideal for producing various sandwich panels for construction applications, including:

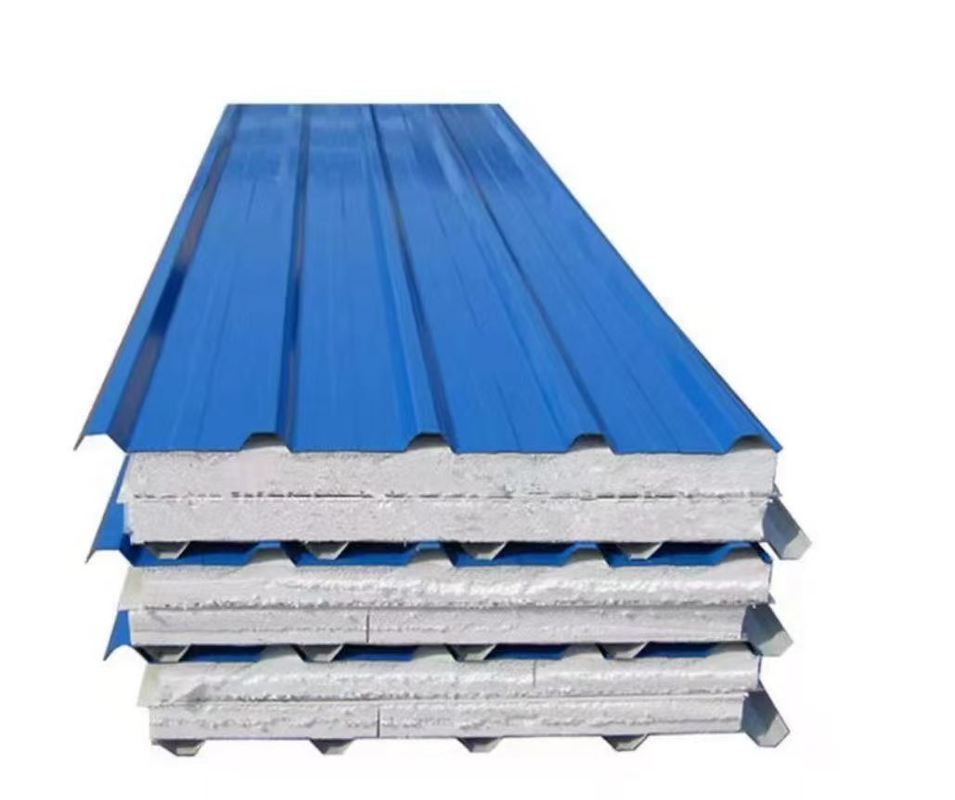

Sandwich roof panels
Wall panels
Rock wool sandwich panels
Residential and commercial building panels

The machine features a reliable gear/sprocket transmission system and Lichao motor brand for optimal performance in production lines.

Support and Services

Comprehensive technical support is available, including:

Installation assistance
Troubleshooting support
Maintenance guidance
Detailed product manuals and training materials

Frequently Asked Questions

Q: What is the brand name of this Sandwich Panel Roll Forming Machine?

A: The brand name is FMS.

Q: What is the model number of this machine?

A: The model number is FMS-sandwich.

Q: Where is this Sandwich Panel Roll Forming Machine manufactured?

A: It is manufactured in China.

Q: What type of panels can be produced using this machine?

A: This machine can produce a variety of sandwich panels, including those with different core materials and thicknesses.

Q: Is technical support available for this machine?

A: Yes, technical support is provided by the manufacturer to assist with any inquiries or issues related to the machine.
