원래 장소:
중국 본토
브랜드 이름:
CANGZHOU WILLING
인증:
ISO CE
모델 번호:

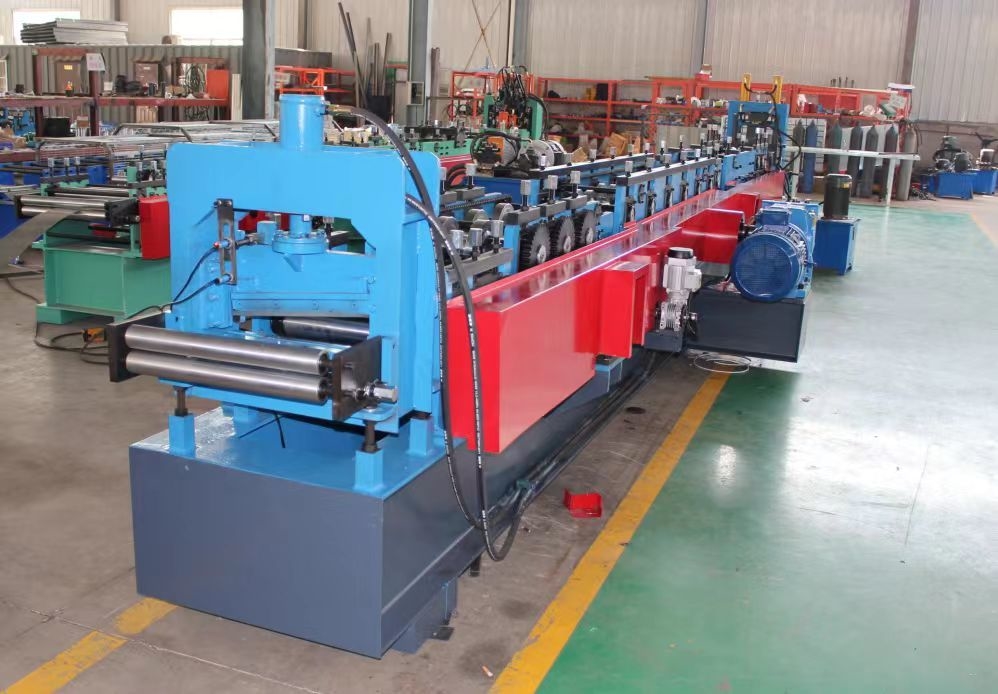

완전 자동 C 퍼플린 머신
| No. | Item | Description |
| 1 | Coil | Galvanized |
| Material Thickness | 1 mm- 3 mm | |
| 3 | Working Speed | 10- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 16 Raws |
| 5 | Dimension (L*W*H) | 8000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4500 KG |
| 7 | Electrical Control System | Panasonic PLC (can be customized) |
| 8 | Drive Motor Power | 15KW |
| 9 | Hydraulic Station Power | 15 KW |
| 10 | Power Supply | 360V, 60HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 2 inch |
| 13 | Material of Shaft | 80 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
40% in advance as down payment
60% is paid before the shipment is processed
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
