제품 상세 정보:
결제 및 배송 조건:
|
상품 이름: | 한 U와 오메가 스터드에서 이회선과 트랙 롤 성형기 | 원료: | PL, GL, PPGL, PPGI |
---|---|---|---|
작동 속도: | 15-20m /min | 물자 간격: | 0.3 밀리미터 - 1.5 밀리미터 |
중량: | 6 톤 | 배달: | 30 일로 일합니다 |
하이 라이트: | 오메가 롤 성형기,U와 오메가 롤 성형기,0.3 밀리미터 오메가 롤 성형기 |

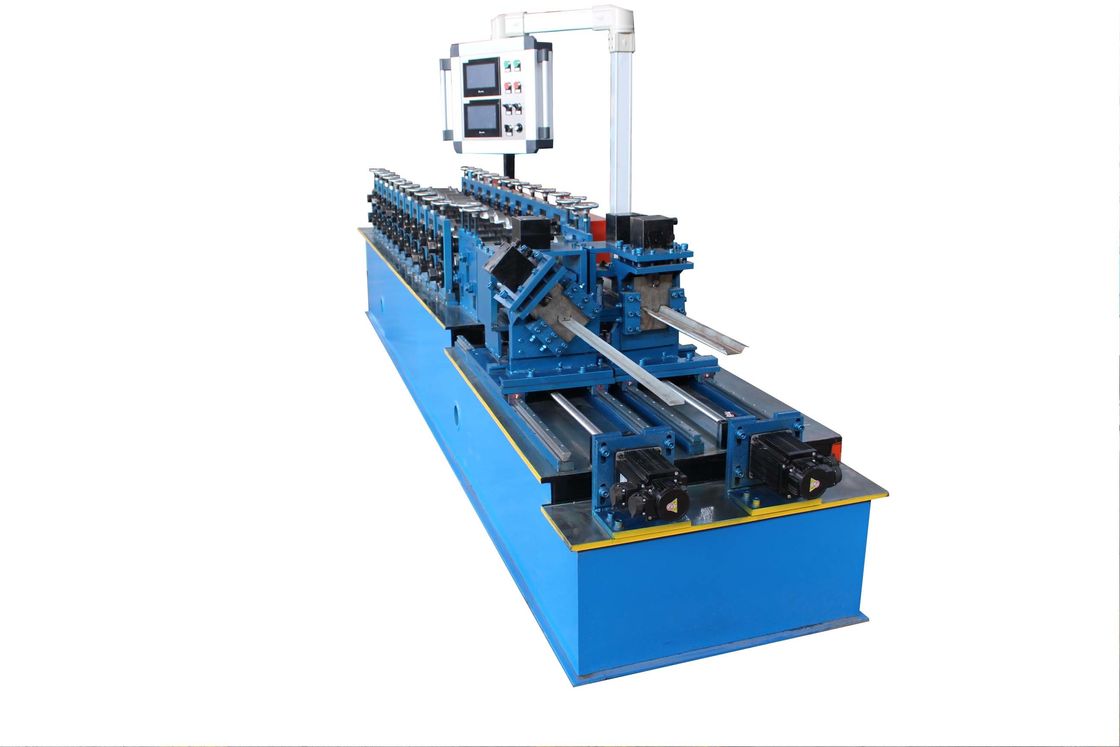

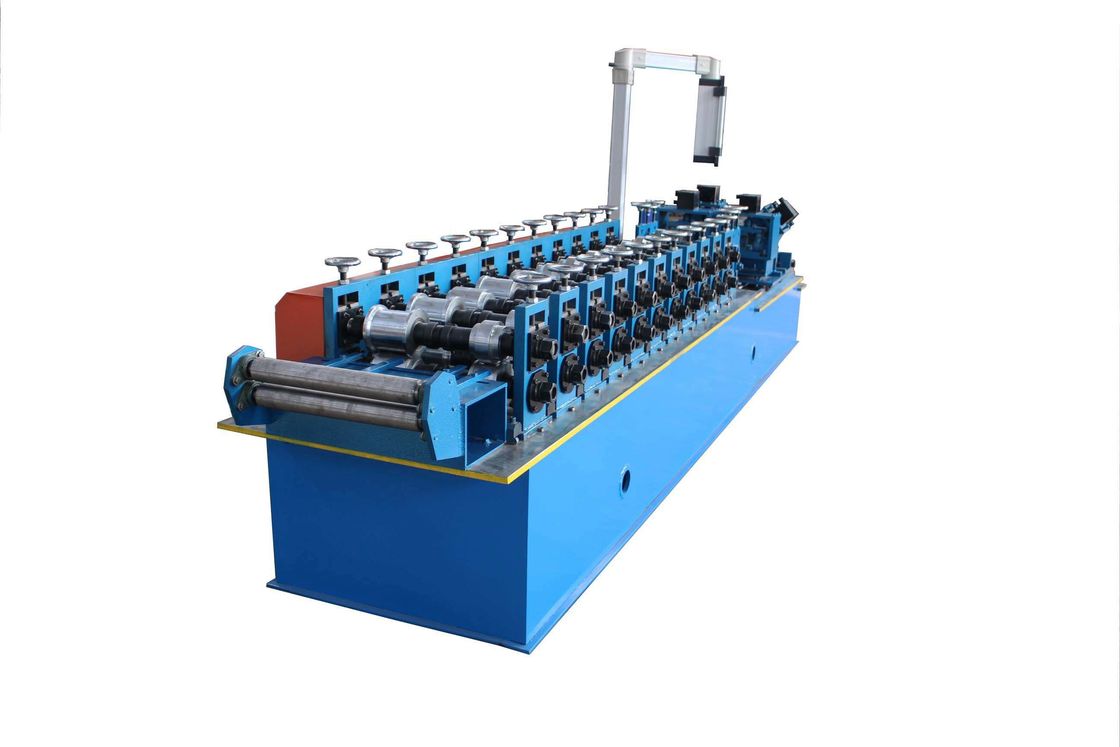

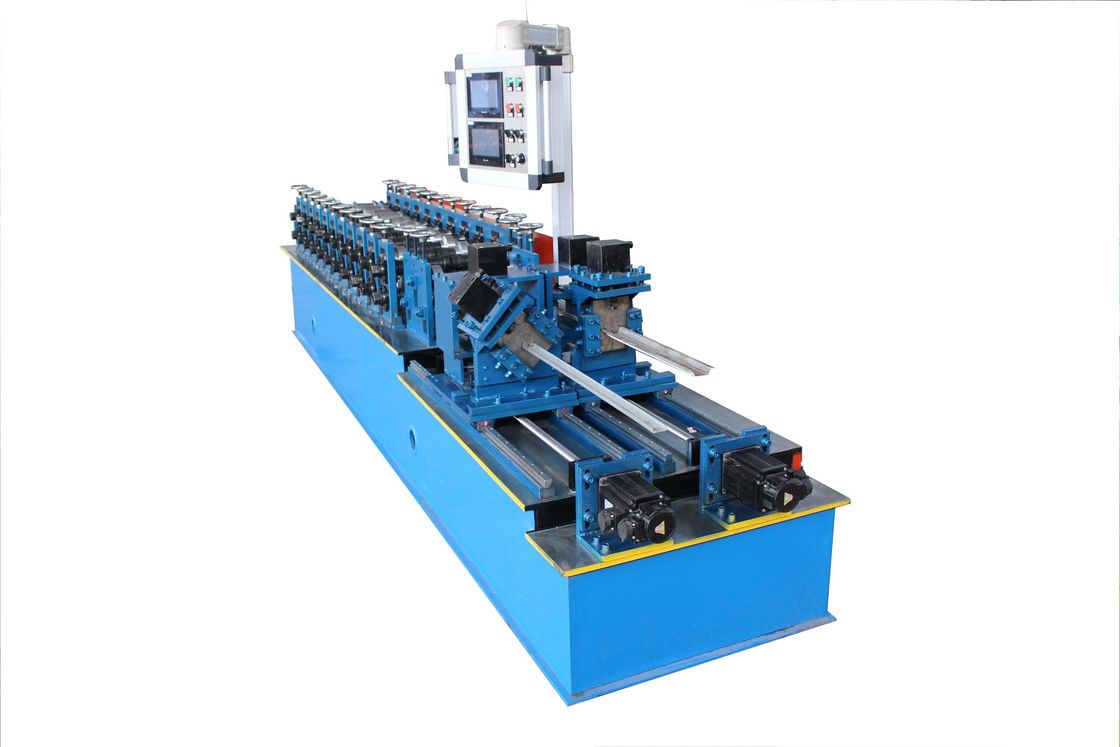

Two Line In One U And Omega Stud And Track Roll Forming Machine
C and Omega in one roll forming machine, which is combined with the C chanel roll forming machine and the Omega roll forming machine. It can work separately because it has an independent control system.Two lines working at the same time can effectively use the machine to improve production efficiency
Specification
No. | Item | Description |
1 | Coil | PL,GL,PPGL,PPGI |
2 | Raw Material Thickness | 0.3-1.5mm |
3 | Working Speed | 15-20m/min |
4 | Roller Station | 14 Raws |
5 |
Dimension (L*W*H) |
6000 mm*1500 mm*1500 mm |
6 | Machine Weight | 4500 KG |
7 |
Electrical Control System |
Panasonic PLC (can be customized) |
8 |
Drive Motor Power |
7.5 KW |
9 |
Hydraulic Station Power |
5 KW |
10 |
Power Supply |
380V, 60HZ, 3 PHASES |
11 |
Cutting Accuracy |
±2 mm |
12 |
Driving Mode |
Single Chain 1 inch |
13 |
Material of Shaft |
60 mm 45#steel forged |
14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
C and Omega steel structures have beautiful appearance and strong structure, and they are also widely used nowadays. Good lighting, quick disassembly and assembly, time-saving and laborious, light weight, long service life, good stability, cumbersome construction, convenient transportation, and ability to disassemble and assemble many times; the house has features such as meticulous sealing, sound insulation, waterproof structure, moisture resistance and corrosion resistance , Fire resistance, robustness and stability, random intervals, multiple disassembly and assembly and other high-quality functions to meet the opposite needs of customers, so C-shaped steel is widely used in real life.
Advantage
Cangzhou willing has a long history in producing purlin lines. Their technology experience was solidified decades ago with a flexible hydraulic punching system called the soft punch. Since then cangzhou willing has produced several systems to accommodate the changing industry needs.We have a team of professionals with years of experience and proven track record in bringing to you something advanced and innovative that is energy efficient too.
